LS3 Dyno Tuning Results
Three naturally aspirated VF Commodore LS3 combinations tested and tuned at Oztrack. See the parts fitted, the final rear-wheel power and the dyno graphs from each car.

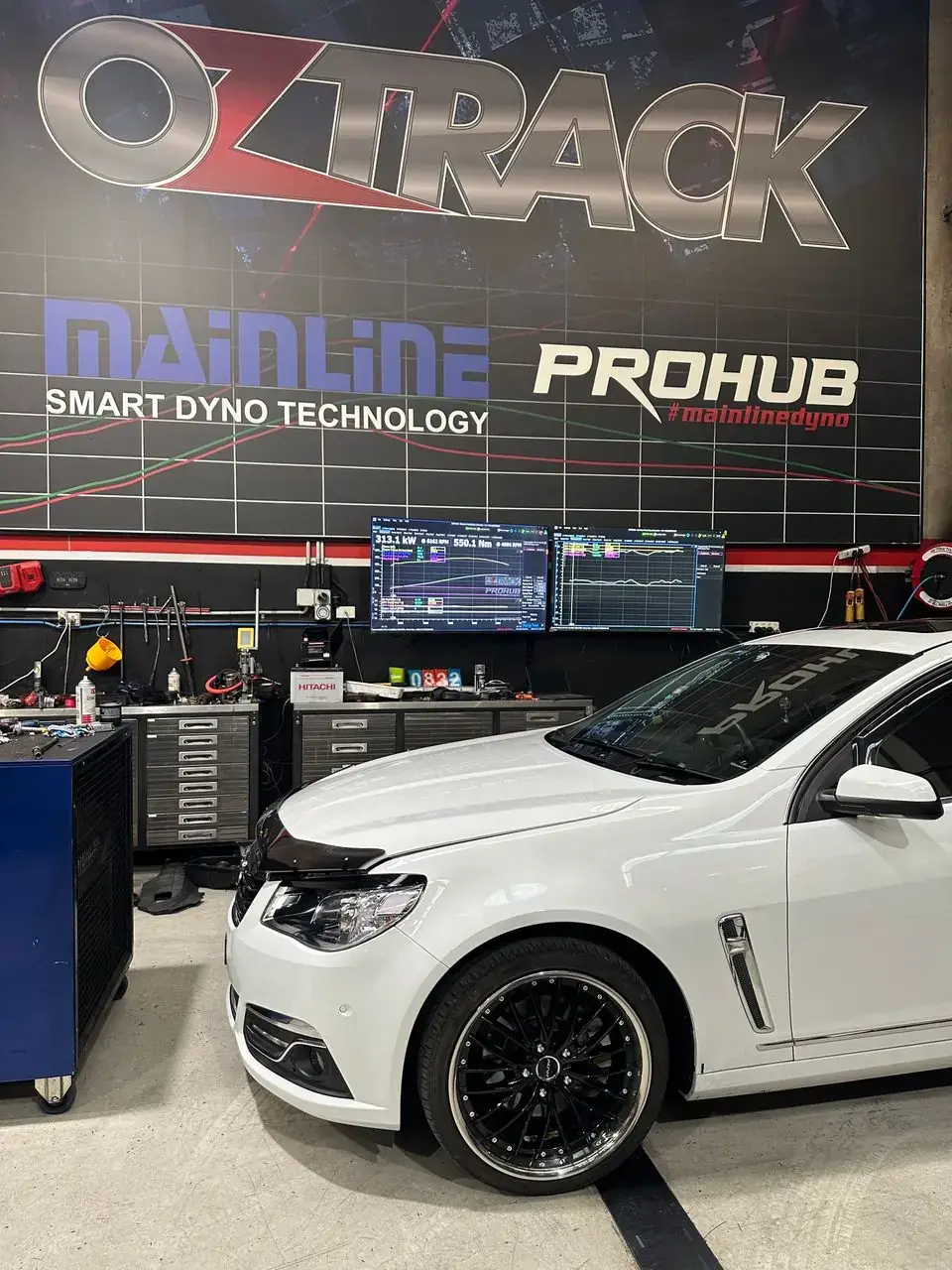

All results were recorded on the same Oztrack Mainline ProHub dyno in Penrith.
Recorded at Oztrack
Real VF LS3 combinations and measured results
These results show how different LS3 combinations perform on the same Mainline ProHub dyno. Power varies with engine condition, camshaft, cylinder heads, exhaust, intake, fuel and the complete setup. We tune each car around its own combination rather than chasing one fixed number.

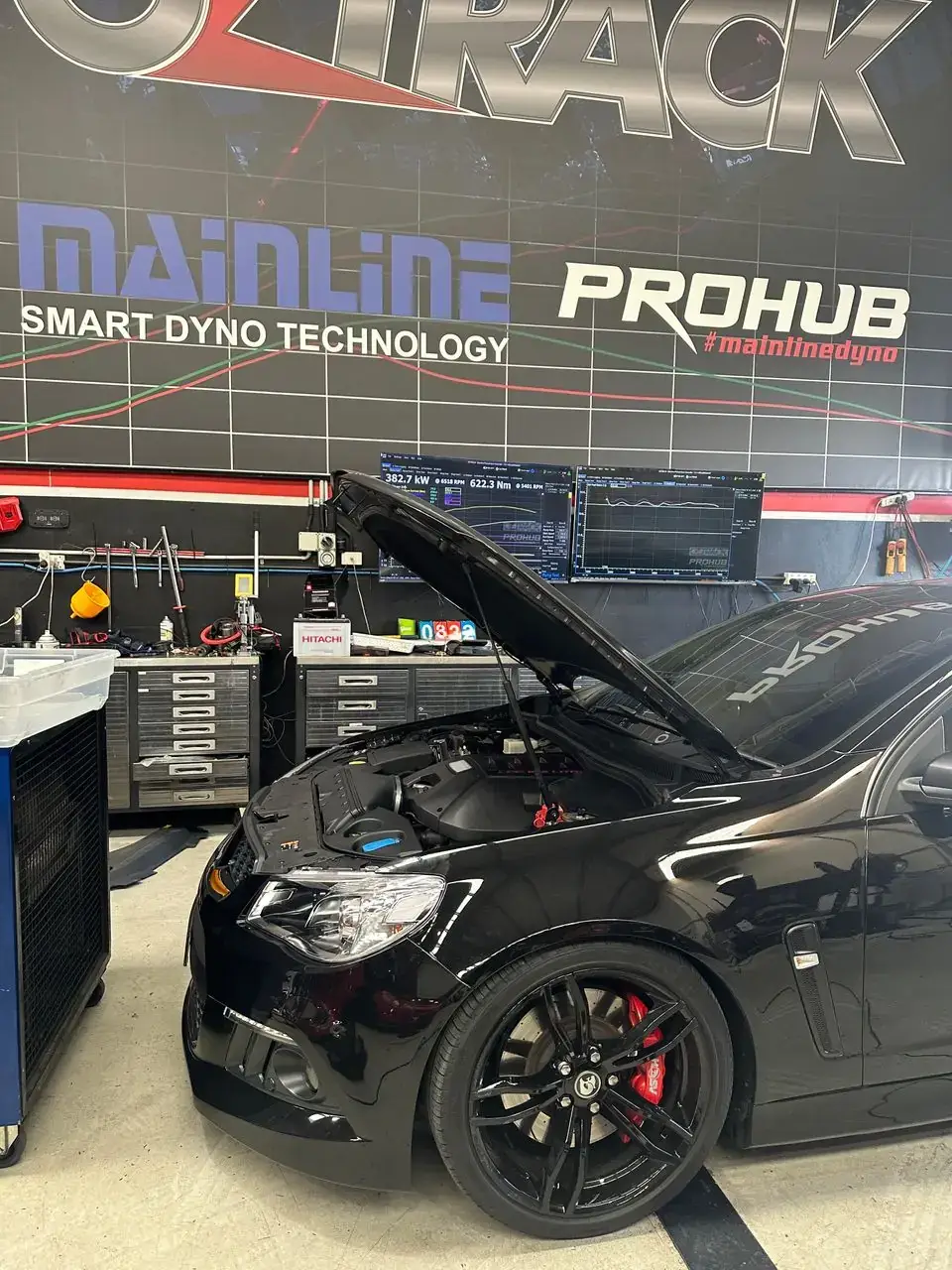

Myles · VF Commodore LS3 · Manual
CNC-ported head LS3

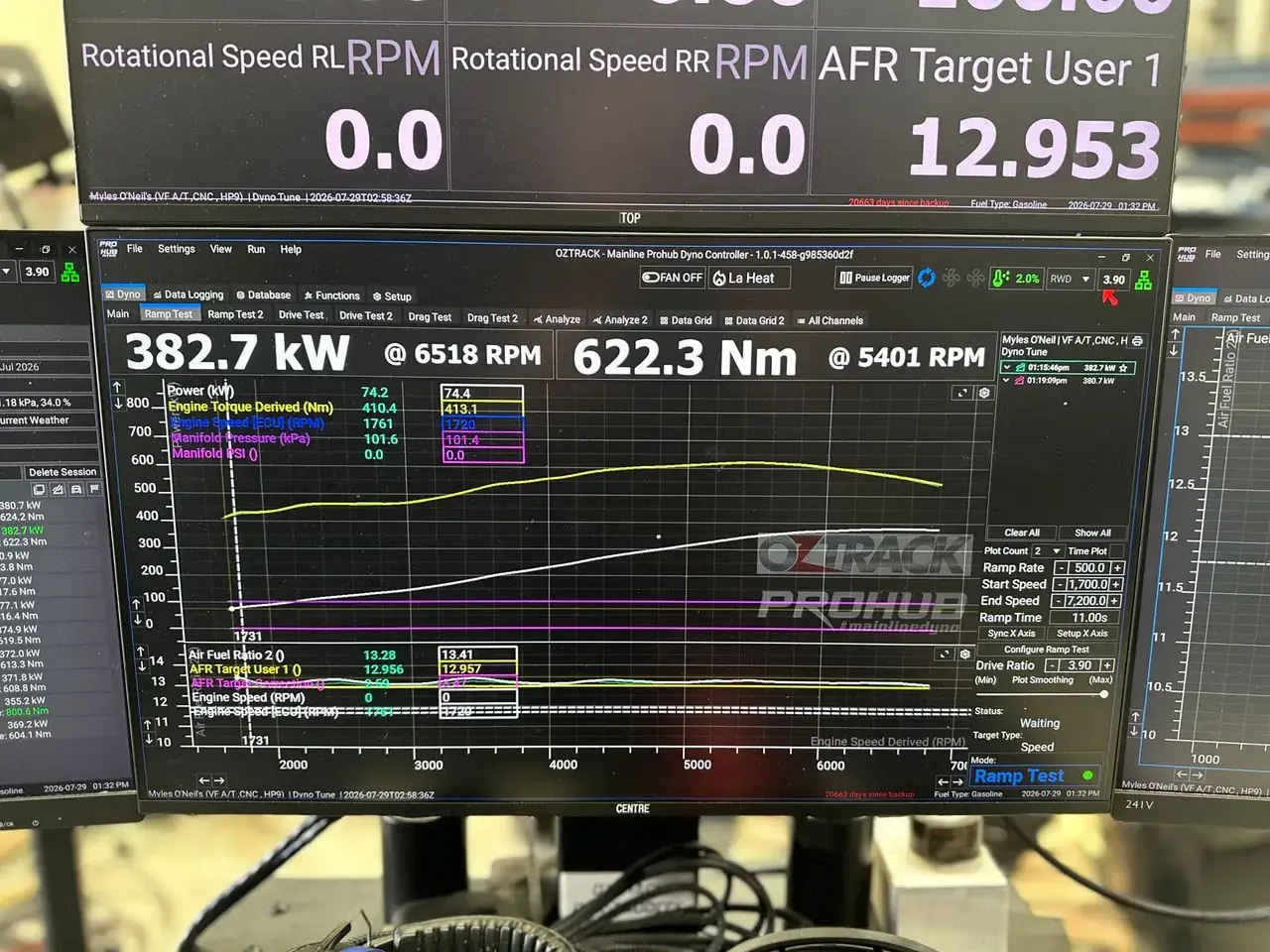

Myles’ manual VF LS3 combines CNC-ported cylinder heads with a free-flowing DPE exhaust and VCM over-the-radiator intake. The final run recorded 382.7 rwkW at 6518 rpm and 622.3 Nm at 5401 rpm, rounded here to 383 rwkW and 622 Nm.
- VF LS3 six-speed manual
- CNC-ported cylinder heads
- CHE trunnion bush kit
- 1 7/8-inch four-into-one headers
- DPE three-inch cat-back exhaust
- VCM OTR intake
Rear-wheel figures recorded on the Oztrack Mainline ProHub dyno.

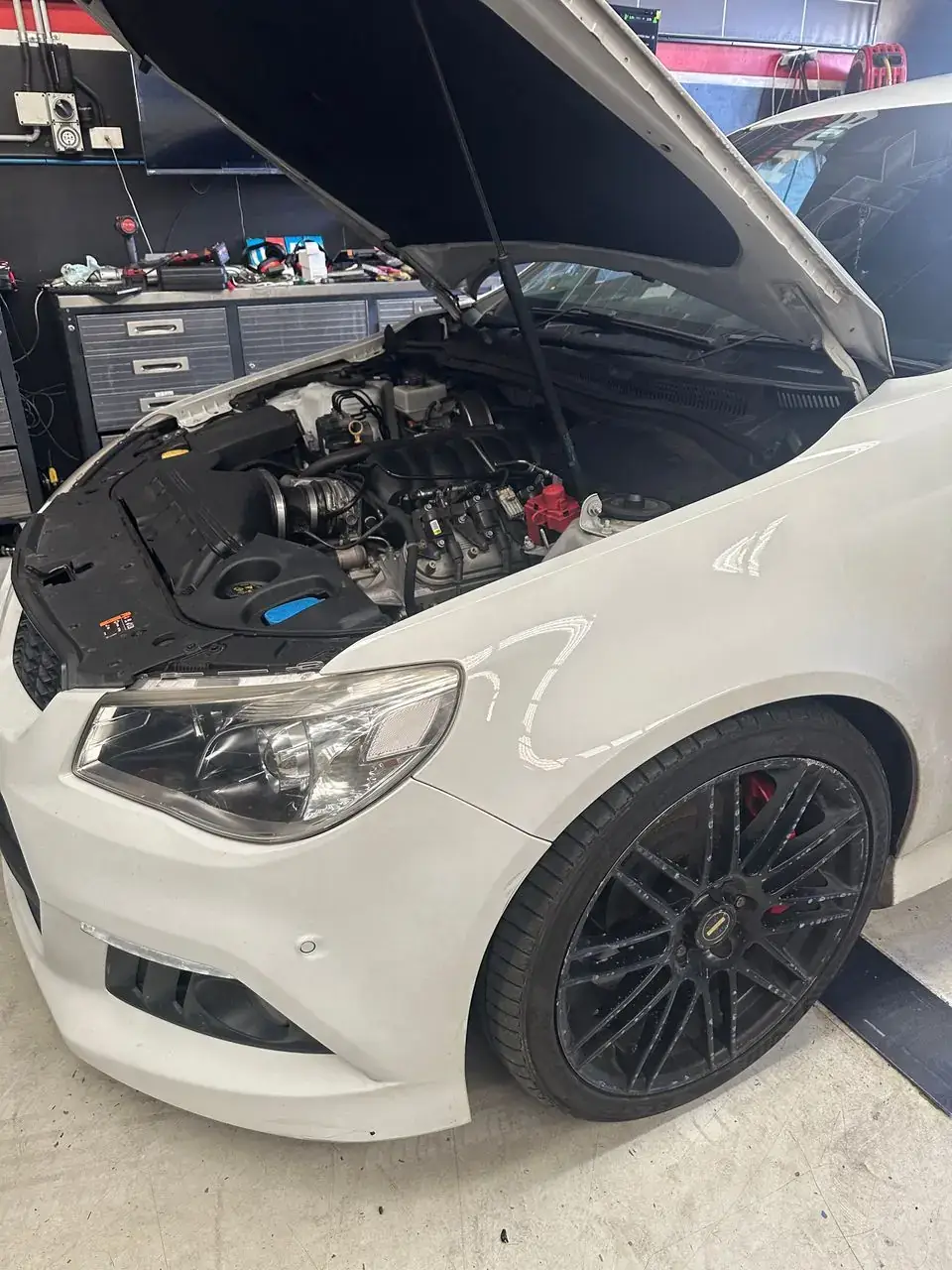

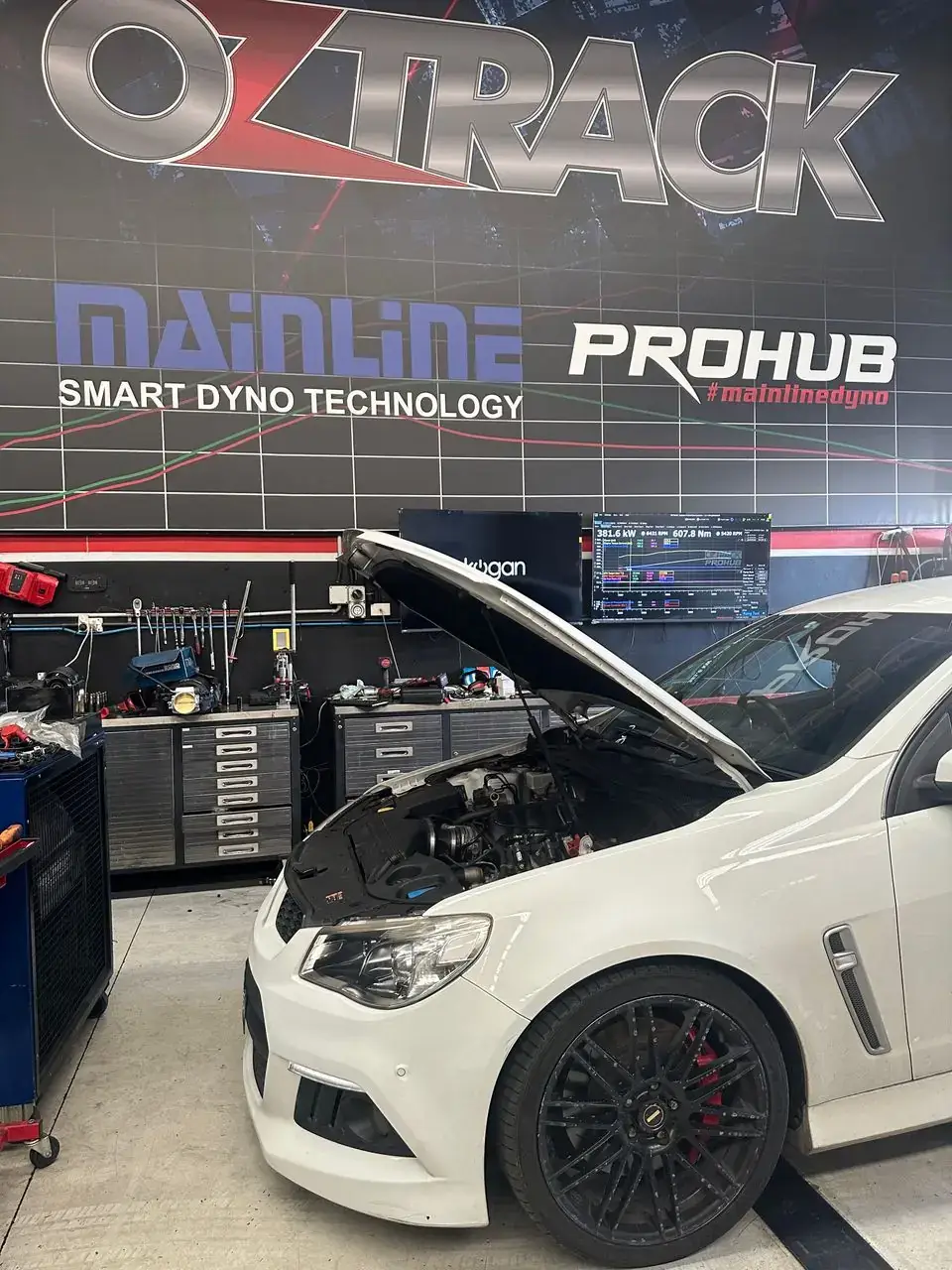

Paul · VF Commodore LS3 · Automatic
Oztrack-built sleeved LS3

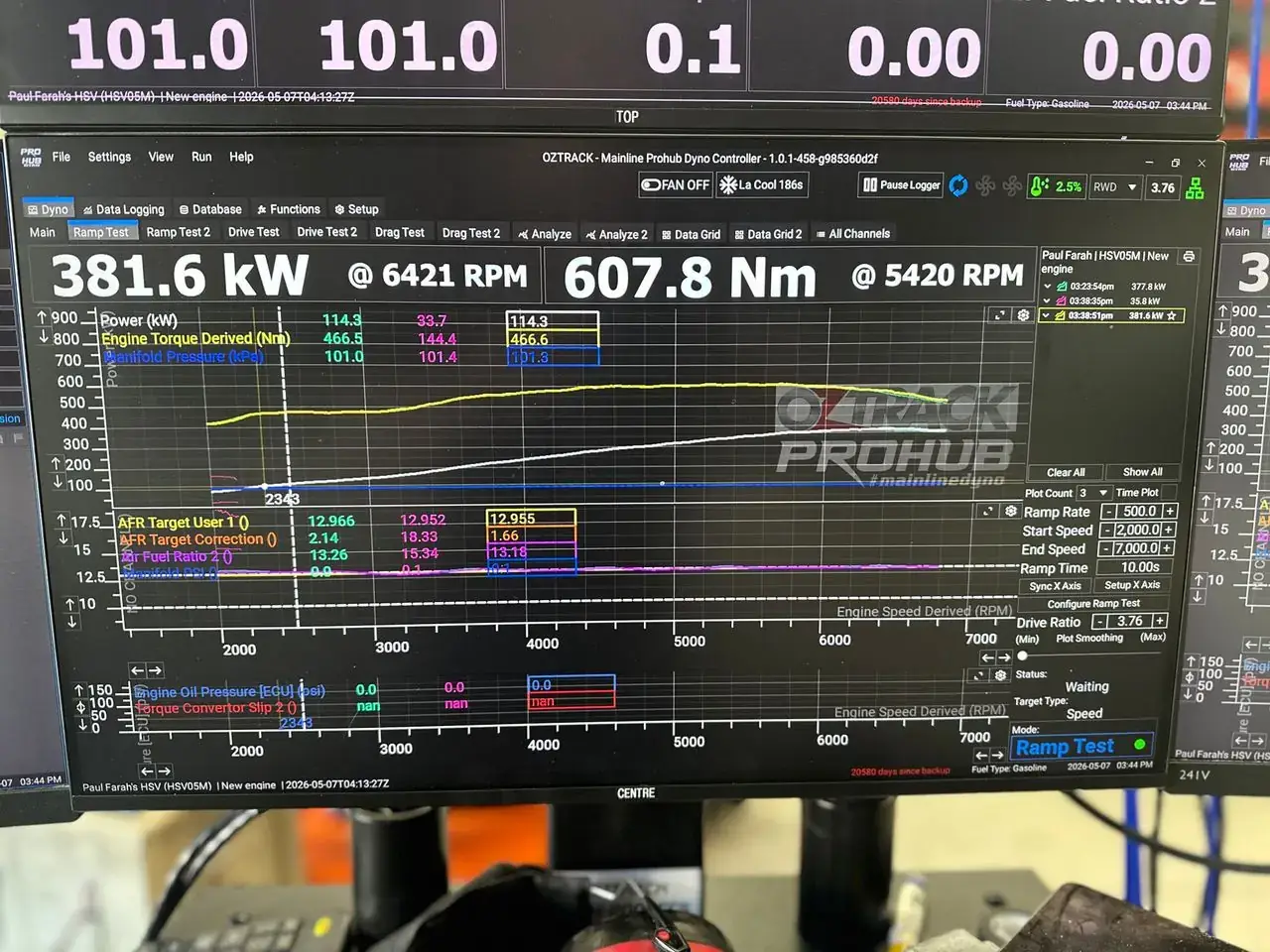

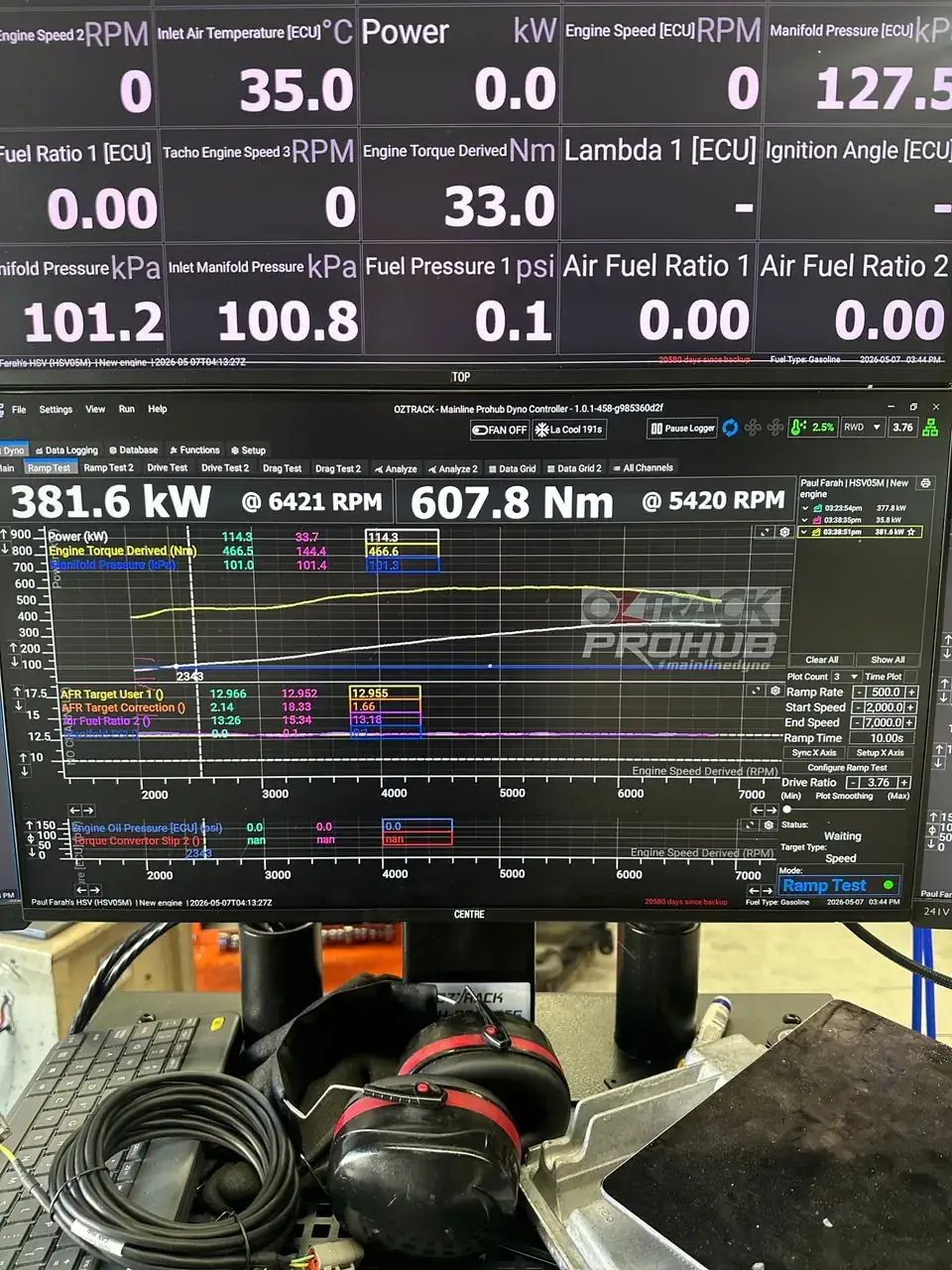

Paul’s VF uses an LS3 that was sleeved, CNC Bored, Diamond Honed and rebuilt in-house at Oztrack. CNC-ported heads, an underdrive balancer, a full DPE exhaust and VCM OTR support the engine combination. Its final run recorded 381.6 rwkW at 6421 rpm and 607.8 Nm at 5420 rpm.
- VF LS3 six-speed auto
- Sleeved and rebuilt at Oztrack
- CNC-ported cylinder heads
- CHE trunnion bush kit
- 25% underdrive balancer kit
- 1 7/8-inch four-into-one headers
- DPE three-inch cat-back exhaust
- VCM OTR intake
Engine work and dyno tuning completed in-house at Oztrack, Penrith. See our LS engine rebuilding services.

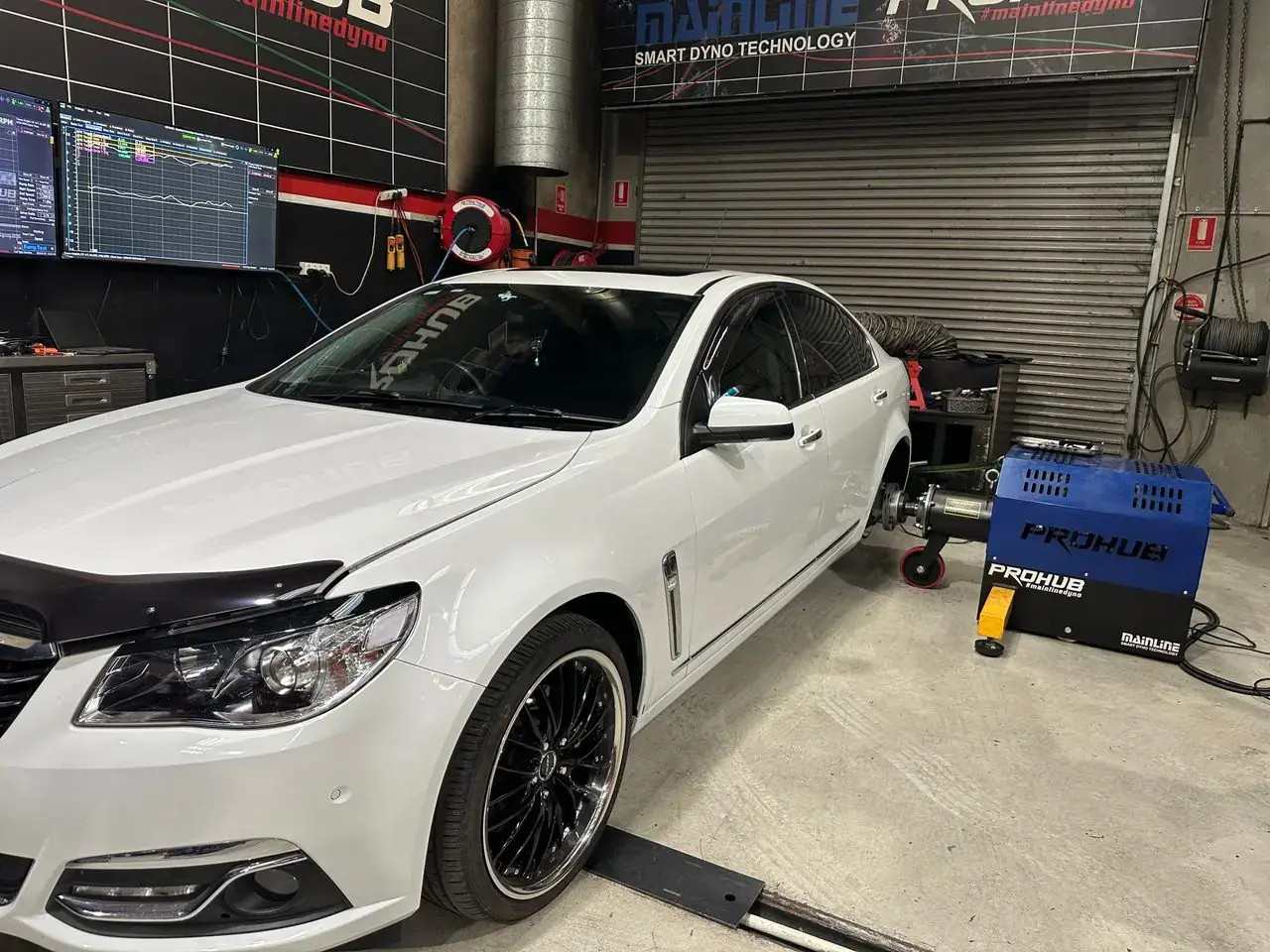

Tracy · VF Commodore LS3 · Automatic
Intake and full-exhaust LS3

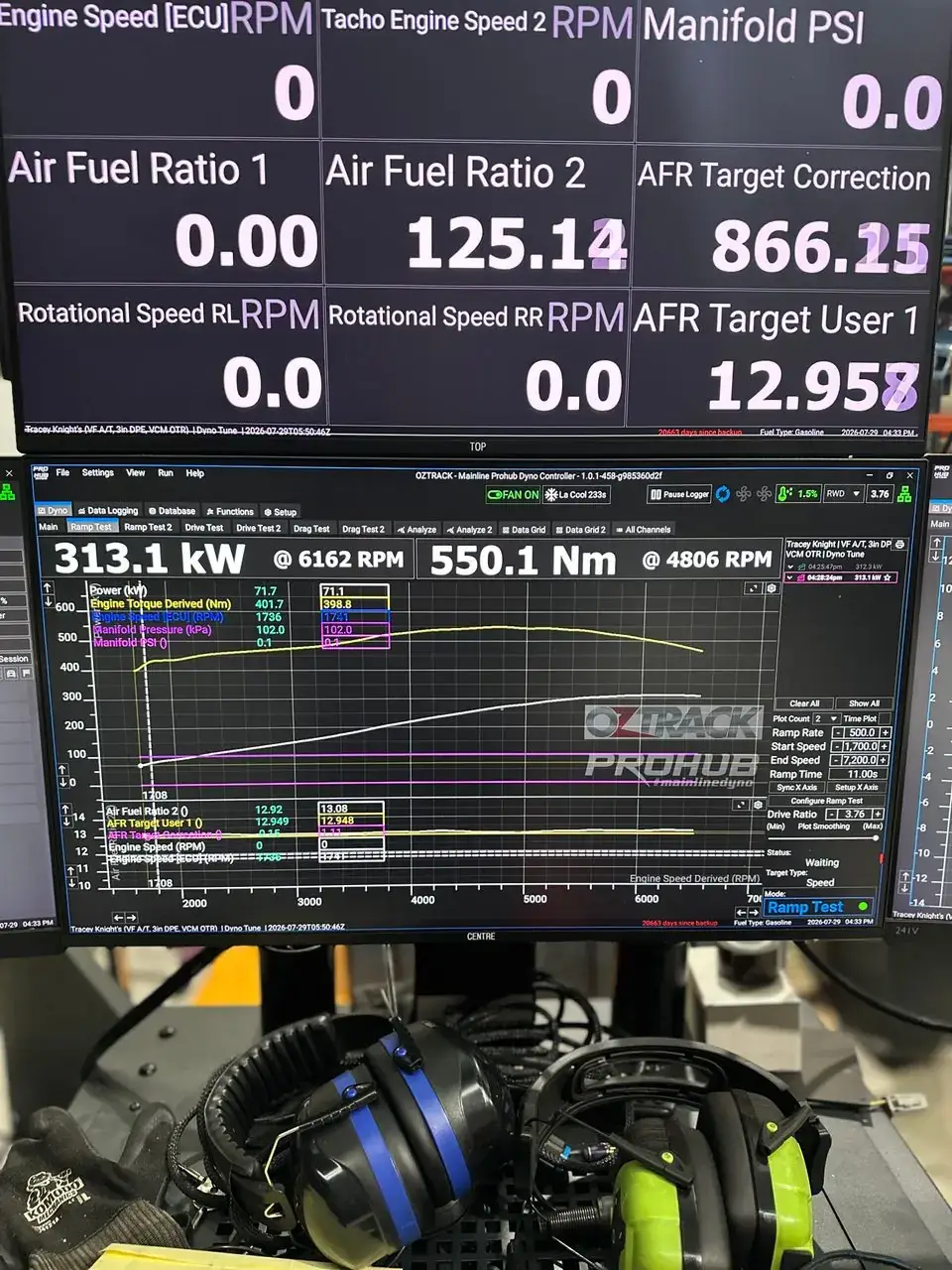

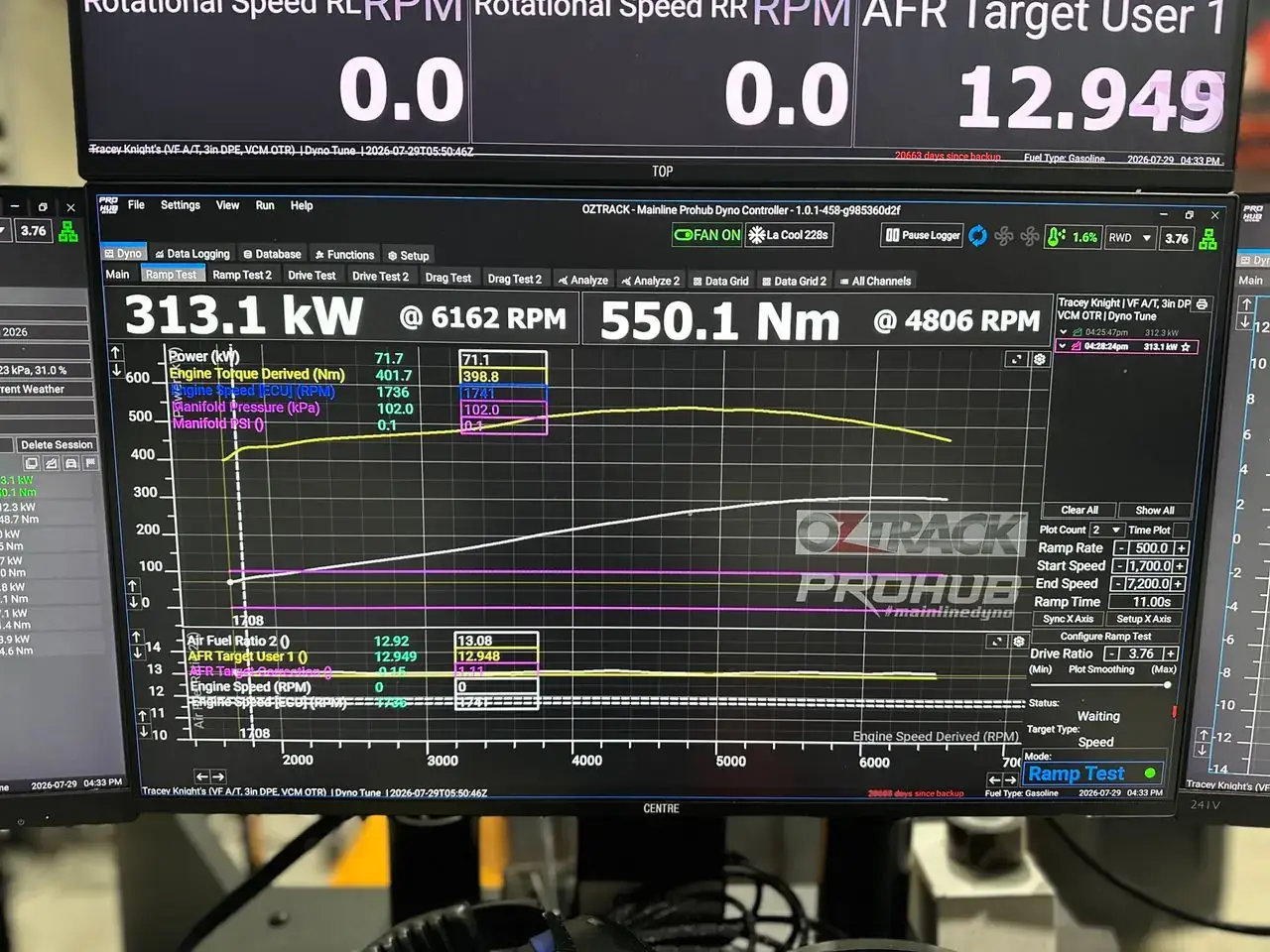

Tracy’s manual VF LS3 is a useful example of a simpler intake-and-exhaust combination. With a VCM OTR, long-tube headers, a three-inch DPE cat-back and custom dyno tuning, it recorded 313.1 rwkW at 6162 rpm and 550.1 Nm at 4806 rpm. This is called our OZ380 Package.
- VF LS3 six-speed automatic
- 1 7/8-inch four-into-one headers
- DPE three-inch cat-back exhaust
- VCM OTR intake
- Oztrack custom dyno tune
A strong naturally aspirated LS3 result without the ported-head combination used in the two cars above. Learn more about OZ380 Packages at Oztrack.
Inspect and log
We check the car and log the engine before making calibration changes.
Tune the combination
Fuel, spark, airflow and torque settings are adjusted for the parts fitted to your LS3.
Verify the result
Final runs confirm power delivery, air-fuel ratio and repeatability under load.
LS3 dyno result questions
What affects LS3 rear-wheel power?
What power will my VF LS3 make?
The result depends on the engine’s condition and the complete combination. Intake, exhaust, camshaft, cylinder heads, compression, fuel, transmission and tyre or hub setup can all change the measured figure. We assess your car and parts before setting an expectation.
Why do similar LS3 builds make different power?
Two cars with similar parts can differ because of engine condition, camshaft specifications, head flow, exhaust restrictions, fuel quality and calibration. Dyno type and test method also affect comparisons, which is why results from the same dyno are more useful.
Where are these LS3 dyno results measured?
All three cars shown here were measured at Oztrack Engineering & Tuning in Penrith, Western Sydney, using our Mainline ProHub dyno.
