Commodore Fuel Pump 1000hp to suit VE and VF

1000hp VE Commodore Fuel Pump Upgrade also suitable for VF and GenF LSA.

No other Commodore fuel module in the world can support this much power. The KPM 1000 stands out for its efficiency, functionality, and fuel delivery.The KPM 1000hp Module replaces the original fuel module. It provides cool, dense fuel to support power levels up to 1000hp. This upgrade is ideal for both racing and everyday city driving.Remove your standard OEM module and directly fit your KPM 1000 HP module. Nothing more to do – Job done!

DIRECT SUPPLY FUEL MODULE VS. OTHER FUEL SUPPLY METHODS

Until now, the main fuel system solutions have been to increase the voltage to the fuel pumps. Another option is to replace the fuel module canister with a hanger manifold. This manifold can hold one or more pumps. Lastly, some have modified the direct supply fuel system into an older return-style fuel system.All these methods have been a stop-gap solution, however with limitations;

Voltage boosted Pumps

A fuel pump operating at higher voltages than designed for can run hotter. This can lead to a shorter service life for the pump. This adds extra load to your vehicle’s electrical/charging system. It also creates a hot fuel environment. This reduces your ability to optimize performance. As a result, it leads to higher fuel usage and less stable tuning.

Hanger manifolds

Hanger manifolds take the place of the fuel module in your fuel tank. This change allows for more space for multiple pumps, which can improve fuel delivery.Hanger manifolds differ from fuel modules because they lack a canister, venturi pump, or refill valve system. This means the pumps are not always surrounded by fuel. You should keep a full fuel tank at all times. This helps stop fuel surges or starvation. This is important during fast driving, cornering, or hard acceleration. These situations often happen in racing or drag conditions.

Return Style Modified Systems

Modifying your original equipment manufacturer (OEM) direct supply system to a return-style system is a useful upgrade. This change is especially important when retrofitting larger fuel pumps. A return-style system helps keep your in-tank canister full of fuel. This constant flow of return fuel helps prevent issues like surge and starvation in the fuel system. This method was accepted in OEM vehicles 10-15 years ago. However, this setup requires the fuel pressure regulator to be mounted externally, usually at the engine fuel rail. It also needs double the amount of fuel lines. As fuel demand increases, the current draw of the fuel pump also rises.This situation leads to hot fuel returning to the system. This reduces your ability to optimize performance. It also increases the risk of vaporization. As a result, you may experience higher fuel usage and less stable tuning.Alternatively, a direct supply fuel system delivers cool, dense fuel from the tank without recirculation. This design creates a more efficient and modern high-performance fuel system.

Fuel Module

The KPM 1000 hp Fuel Module is designed with the best fuel pumps for high flow and performance. It is all contained in an OEM-style high-flow fuel canister and distribution manifold. The KPM fuel module is mounted and immersed in the vehicle’s fuel tank as per OEM design and for ease of fitment. This design incorporates a dual-acting Venturi pump and refill valve system to keep the fuel canister full permanently.This means you can use the KPM fuel module at any fuel level safely. It works well in all conditions. There is no risk of surge or fuel starvation. This includes spirited driving, circuit days, or drag racing.The fuel pumps are fully compatible with both petrol and ethanol. They can deliver large amounts of cool, dense fuel at standard vehicle voltages.This equates to optimum tuning and power levels up to 1000 hp (flywheel rated on 98 octane fuel). We use these regularly with Harrop 2300 superchargers and make 480-520 rwkw regularly. This is with much less fuel pressure drop

FITMENT

The KPM 1000hp Fuel Module is a direct replacement system. You can remove your OE module and directly refit the KPM module.The KPM fuel module system is now ready for your tuning expert. They can calibrate your fuel system and tune your vehicle using popular tuning software.

Fully Modular and Upgradable

There may be a time when your 1000 HP Fuel Module needs upgrading.To improve fuel system flexibility, you can use our PWM electronic fuel system controller. Alternatively, you may choose to boost your engine’s power level even more.KPM Fuel Systems has you covered.There is no need to replace your 1000 HP Module. You can enhance it by choosing the right KPM upgrade fuel and PWM system packages that fit your needs.KPM Fuel System engineers have completed the design work for a direct fit upgrade. This upgrade is for your 1000HP Module, ensuring your fuel system fits and works perfectly. NO guesswork! Fit and forget!In addition to your 1000 HP Fuel Module we offer any of the following upgrade packages-

• 1500HP Fuel Pump ADD-ON Kit (Kit #COM-10-15-ADD)
• PWM Fuel Module Controller (Kit #COMPWM1500)
• 2200 HP Fuel ADD-ON Kit (Kit #COM2200-ADD)
• 2200 HP Fuel and PWM ADD-ON Kit (Kit #COMPWM2200)

Features of the 1000hp Module

• Complete fuel module / direct replacement fit / nothing extra required
• Highest performing/flow fuel pump available
• High flow canister, distribution manifold and fittings
• Supports standard power and up to 1000hp
• NO surge in all conditions and fuel levels
• Eliminates the need for voltage boosters
• Eliminates the need for return-style fuel systems
• No extra load on your vehicle’s electrical and charging system
• Cool, dense fuel / creates extra power and economy
• Optimum pump life
• 100% compatible with all fuels
• Ethanol E85/ E100 compatible up to 10,000 hours
• Easy hassle, free fitment
• Suitable as a VE Commodore Fuel Pump Replacement
• Suitable as a VF Commodore Fuel Pump Replacement

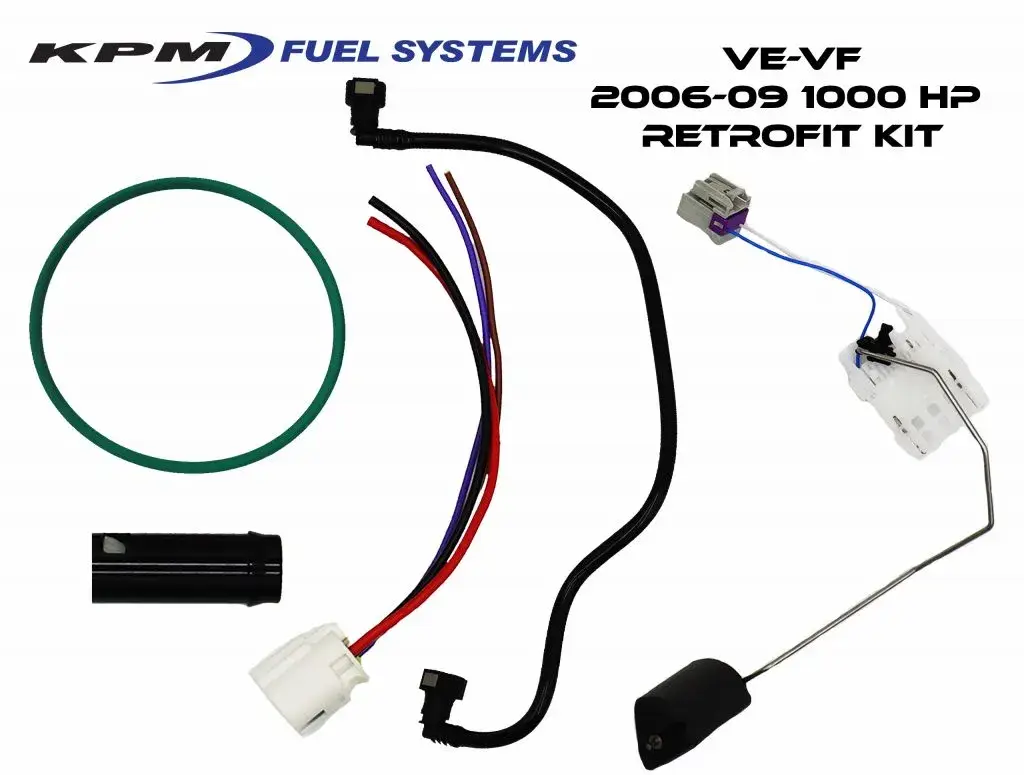

VE Commodore (2006-2009) Models: PART # KPMCOM1000-PK

• KPM 1000 hp In-tank Fuel Module
• O Ring seal
• OE-style fuel supply Line
• Crossover hose adaptor
• Fuel sender Unit
• Wiring connector Loom
• Fitting instructions

NOTE- We supply and/or install the 800HP version in VE 2006-2009 models for $600 less. But it is maxed out with our typical Harrop 2300 installs. Plus, the later models from 2010 onward stock fuel pump are similar in power support. This leaves the 1000hp pump as the better option.VE/VF Commodore & Gen F HSV (2010-2017) Models: PART # KPMCOM1000-P

• KPM 1000 hp In-tank Fuel Module
• O Ring seal
• Fitting instructions

Call us to discuss or order. We can fit the module at Oztrack or freight it to you.Call Us: +61 2 9119 3895
