6.0L Dyno Tuning Results
Five naturally aspirated Holden 6.0-litre V8 combinations tested and tuned at Oztrack. Compare the parts fitted, rear-wheel power, dyno torque and final graphs.
Every result shown here was recorded on the same Oztrack Mainline ProHub dyno in Penrith.
Recorded at Oztrack
Real Holden 6.0L combinations and measured results
These cars show the range possible from LS2, L98 and L77 engines with different camshafts, cylinder heads, exhausts and intakes. Power varies with engine condition, parts, fuel, transmission and the complete setup. We tune each car around its own combination rather than chasing one fixed figure.
Quick comparison
Compare all five Holden 6.0L dyno results
| Customer | Vehicle and engine | Main combination | Power | Torque |
|---|---|---|---|---|
| Thomas | VF L77 manual | HP3 cam and CNC-ported heads | 374.1 rwkW | 606.4 Nm |
| Ricky | VF 6.0L automatic | HP3 cam, exhaust and VCM OTR | 341.3 rwkW | 560.4 Nm |
| Chad | VZ LS2 Maloo automatic | Full exhaust and VCM OTR | 300.4 rwkW | 542.0 Nm |
| Shaun | VE 6.0L ute automatic | FE cam, stock exhaust and airbox | 300.3 rwkW | 551.6 Nm |
| Robert | VE L98 wagon manual | Stock cam, exhaust and VCM OTR | 288.1 rwkW | 531.6 Nm |
Looking for VF LS3 dyno results?
Compare three naturally aspirated VF LS3 combinations producing 313–383 rwkW on the same Oztrack Mainline ProHub dyno.

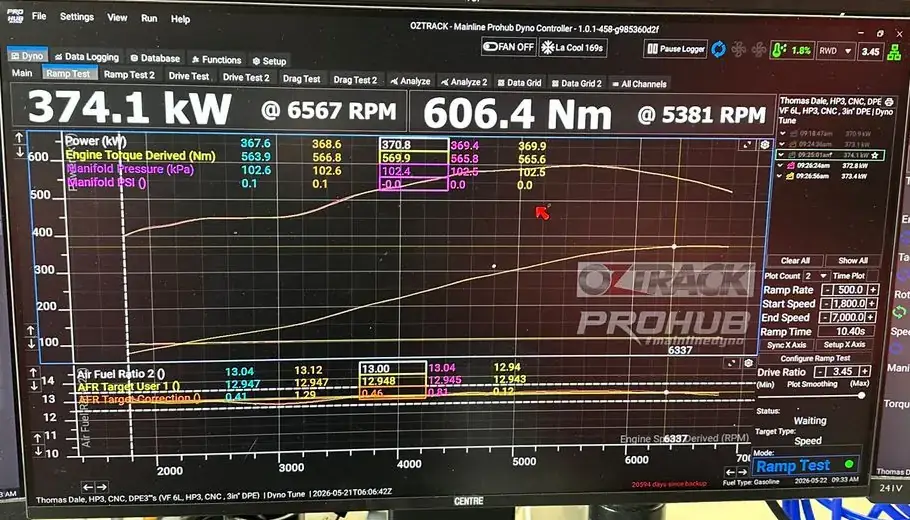

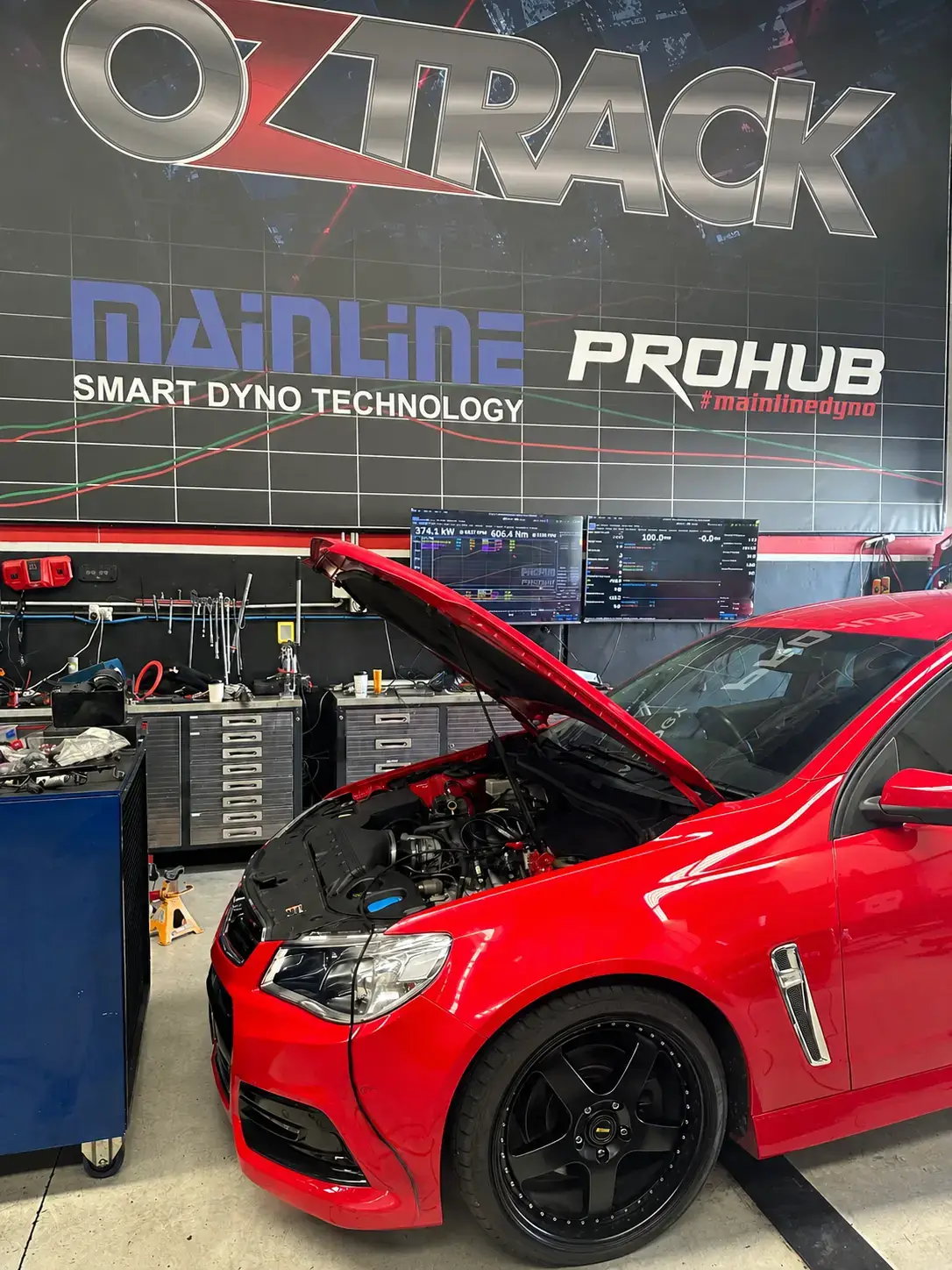

Thomas · VF Commodore L77 · Manual
HP3 cam and CNC-ported heads
Thomas’ manual VF combines an Oztrack HP3 camshaft with CNC-ported cylinder heads, a full Manta exhaust and VCM OTR. The final run recorded 374.1 rwkW at 6567 rpm and 606.4 Nm at 5381 rpm.
- VF Commodore L77 6.0L
- Six-speed manual
- Oztrack HP3 camshaft
- CNC-ported cylinder heads
- CHE rocker bush kit
- 1 7/8-inch headers
- Manta three-inch exhaust
- VCM OTR intake
Rear-wheel figures recorded on the Oztrack Mainline ProHub dyno.

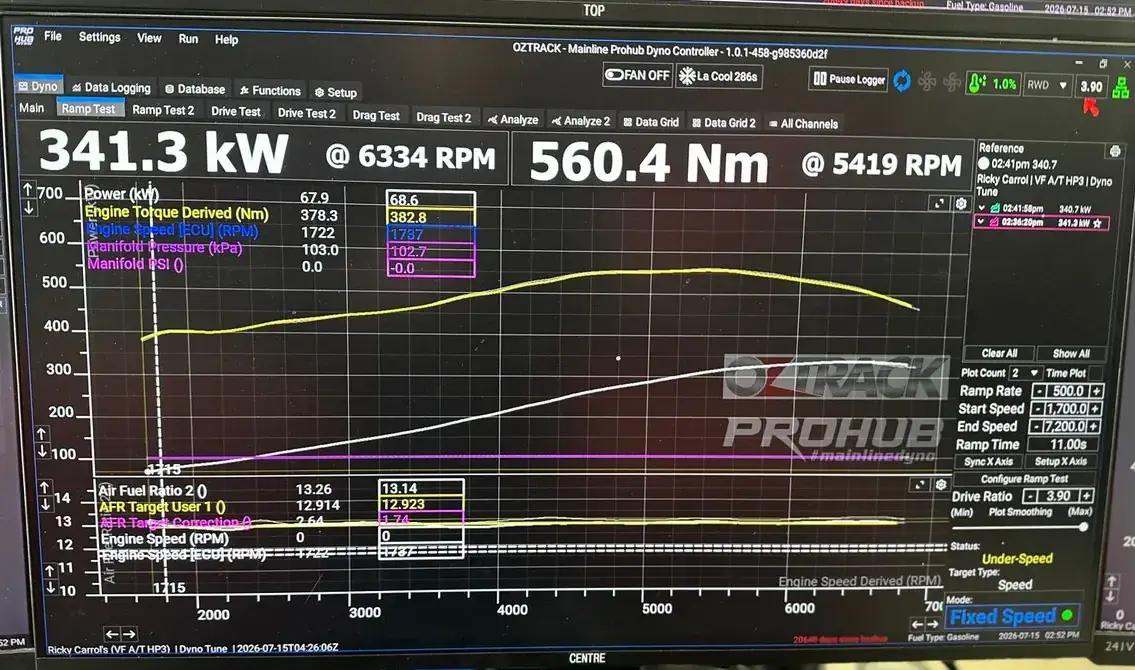

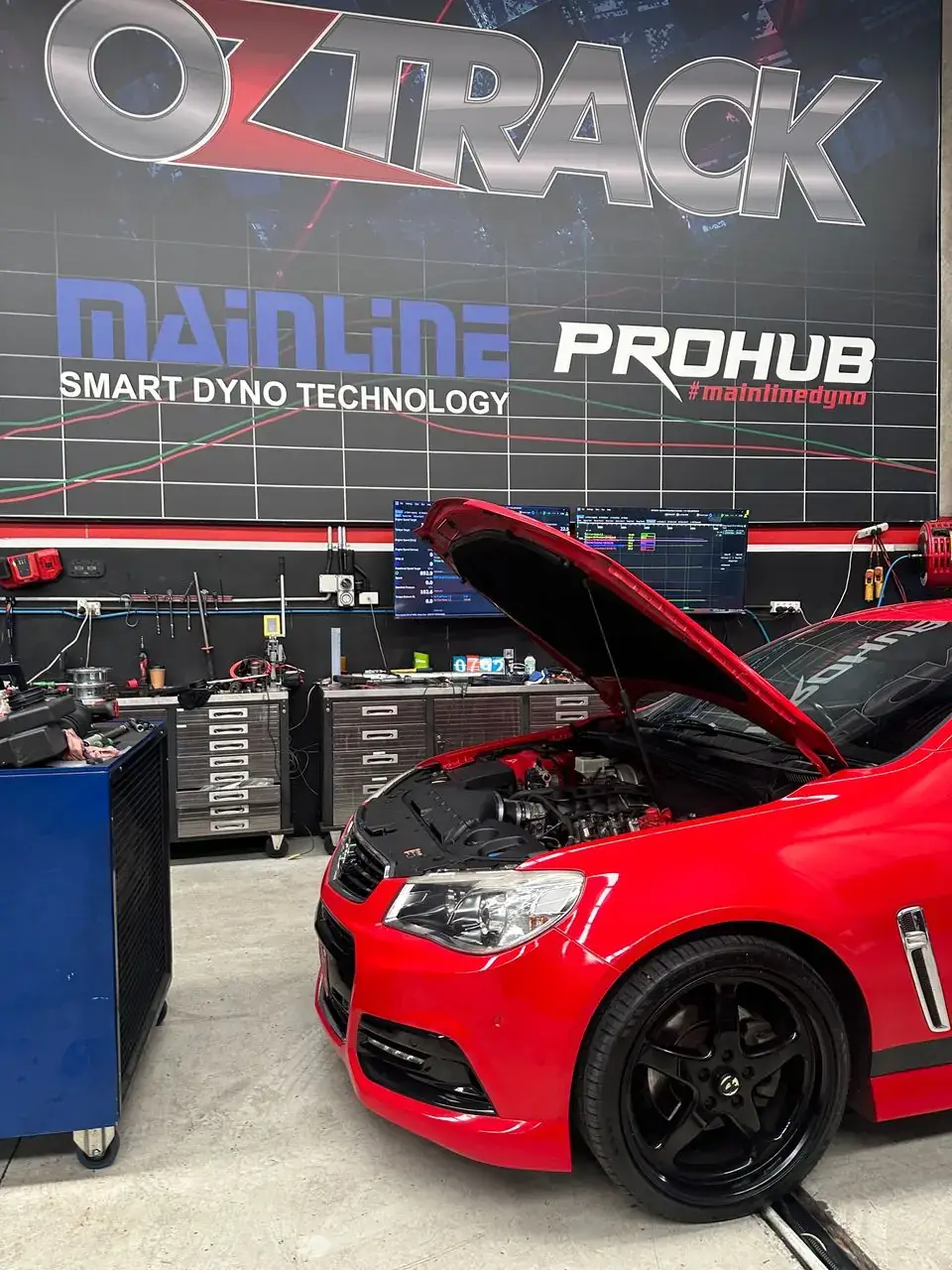

Ricky · VF Commodore 6.0L · Automatic
HP3 cam, exhaust and VCM OTR
Ricky’s six-speed automatic VF uses an Oztrack HP3 camshaft with a performance exhaust and VCM OTR. Its final run recorded 341.3 rwkW at 6334 rpm and 560.4 Nm at 5419 rpm.
- VF Commodore 6.0L
- Six-speed automatic
- Oztrack HP3 camshaft
- Performance exhaust
- VCM OTR intake
- Oztrack custom dyno tune
A cammed automatic combination tuned for strong power delivery across the usable rev range.

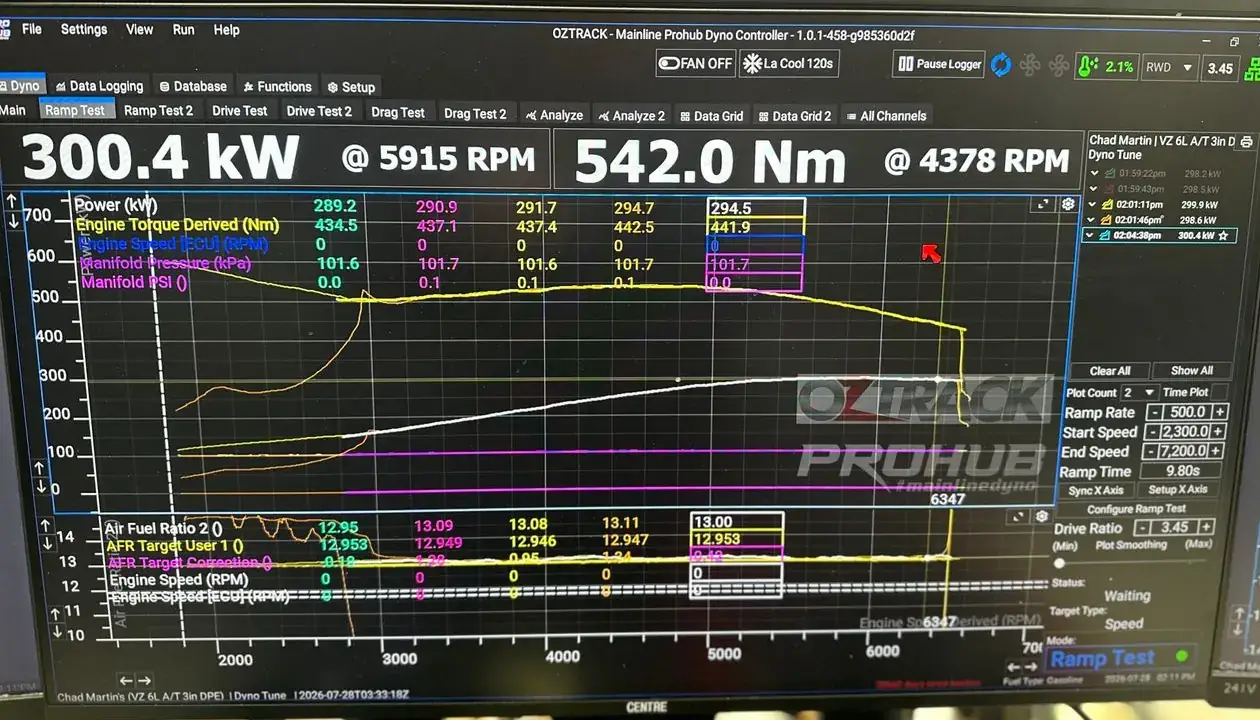

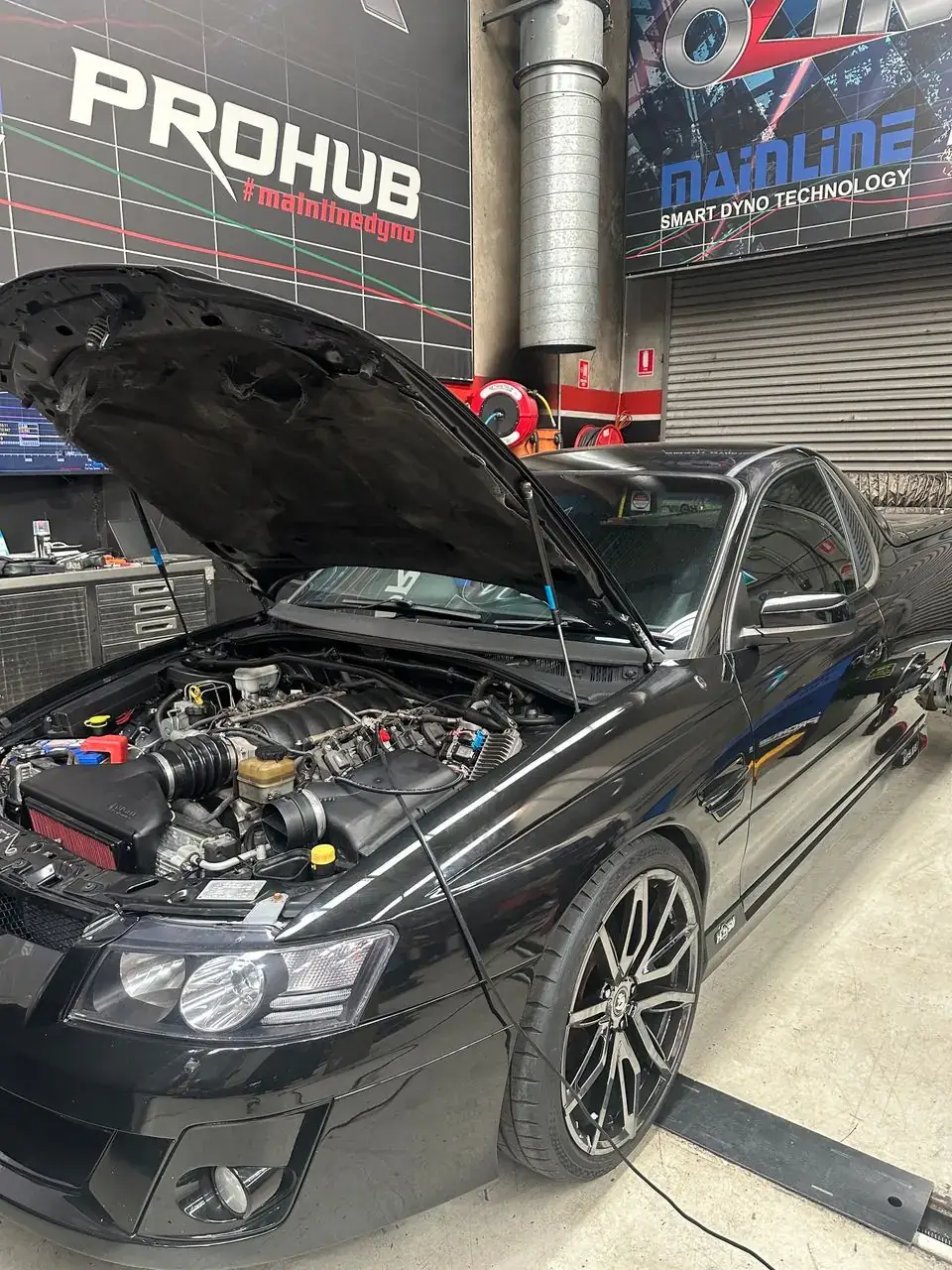

Chad · VZ Maloo LS2 · Automatic
Full-exhaust LS2 Maloo
Chad’s automatic VZ Maloo uses its 6.0-litre LS2 with a full Manta exhaust and VCM OTR. The final run recorded 300.4 rwkW at 5915 rpm and 542.0 Nm at 4378 rpm.
- VZ Maloo LS2 6.0L
- Automatic transmission
- 1 7/8-inch four-into-one headers
- Manta three-inch exhaust
- VCM OTR intake
- Oztrack custom dyno tune
A naturally aspirated LS2 result with intake and full-exhaust upgrades.

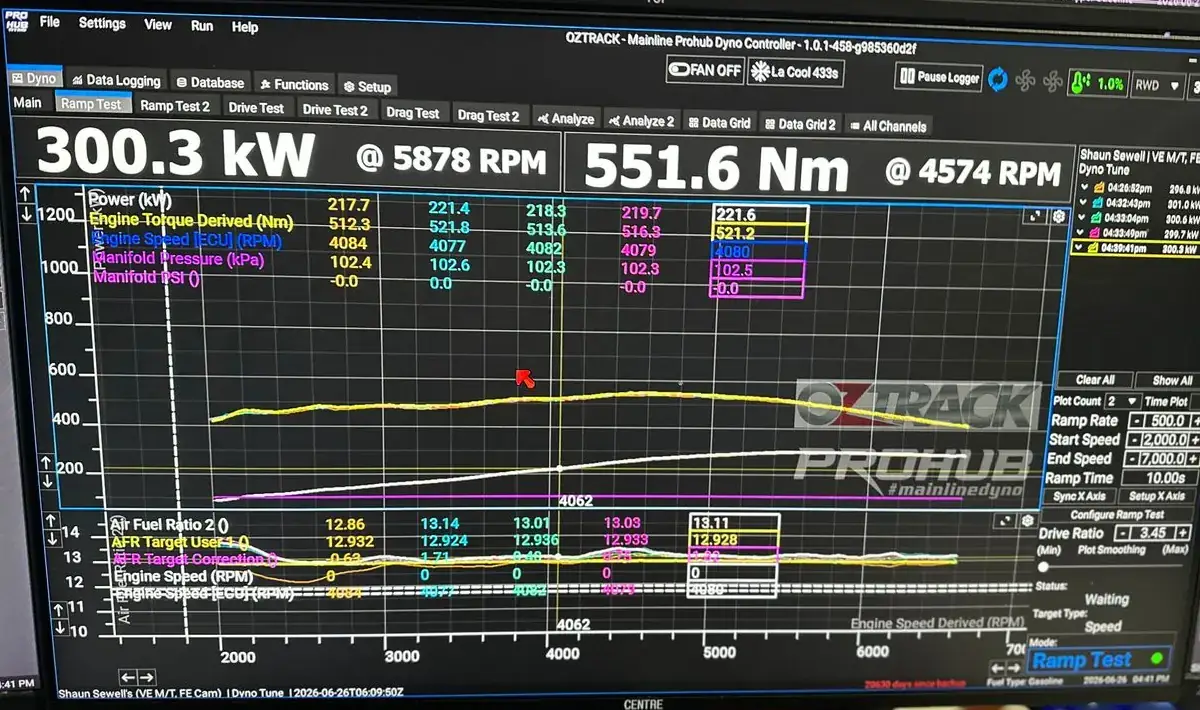

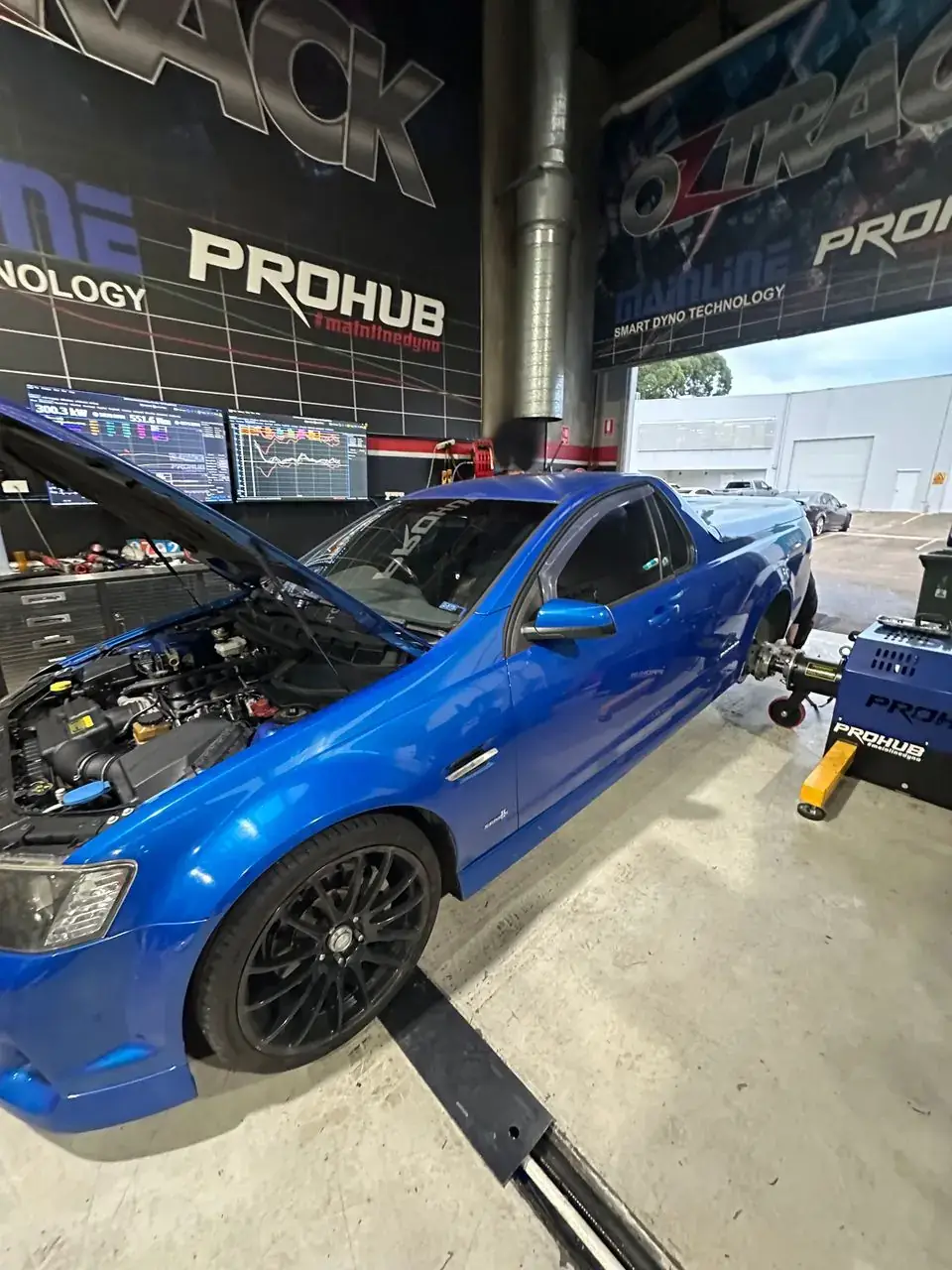

Shaun · VE 6.0L Ute · Automatic
FE cam with stock intake and exhaust
Shaun’s automatic VE ute shows what an FE camshaft combination can produce while retaining the stock exhaust and stock airbox. The final run recorded 300.3 rwkW at 5878 rpm and 551.6 Nm at 4574 rpm.
- VE Commodore ute 6.0L
- Automatic transmission
- FE camshaft
- Stock exhaust
- Stock airbox
- Oztrack custom dyno tune
This result shows the effect of the cam and calibration without intake or exhaust upgrades.

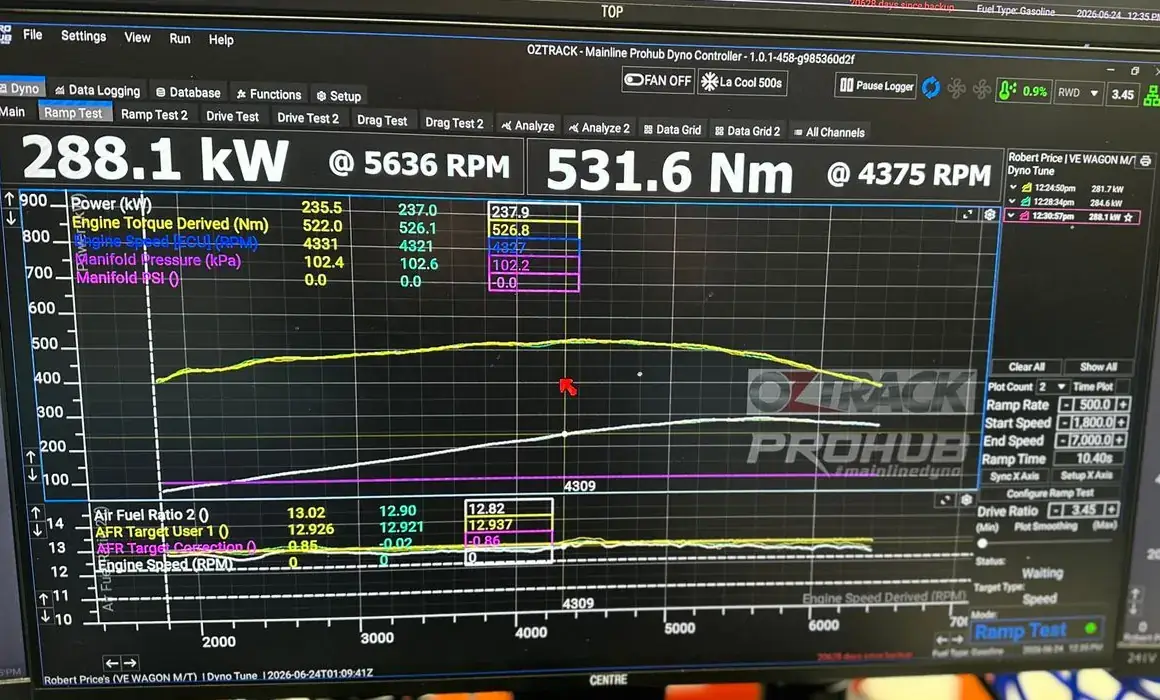

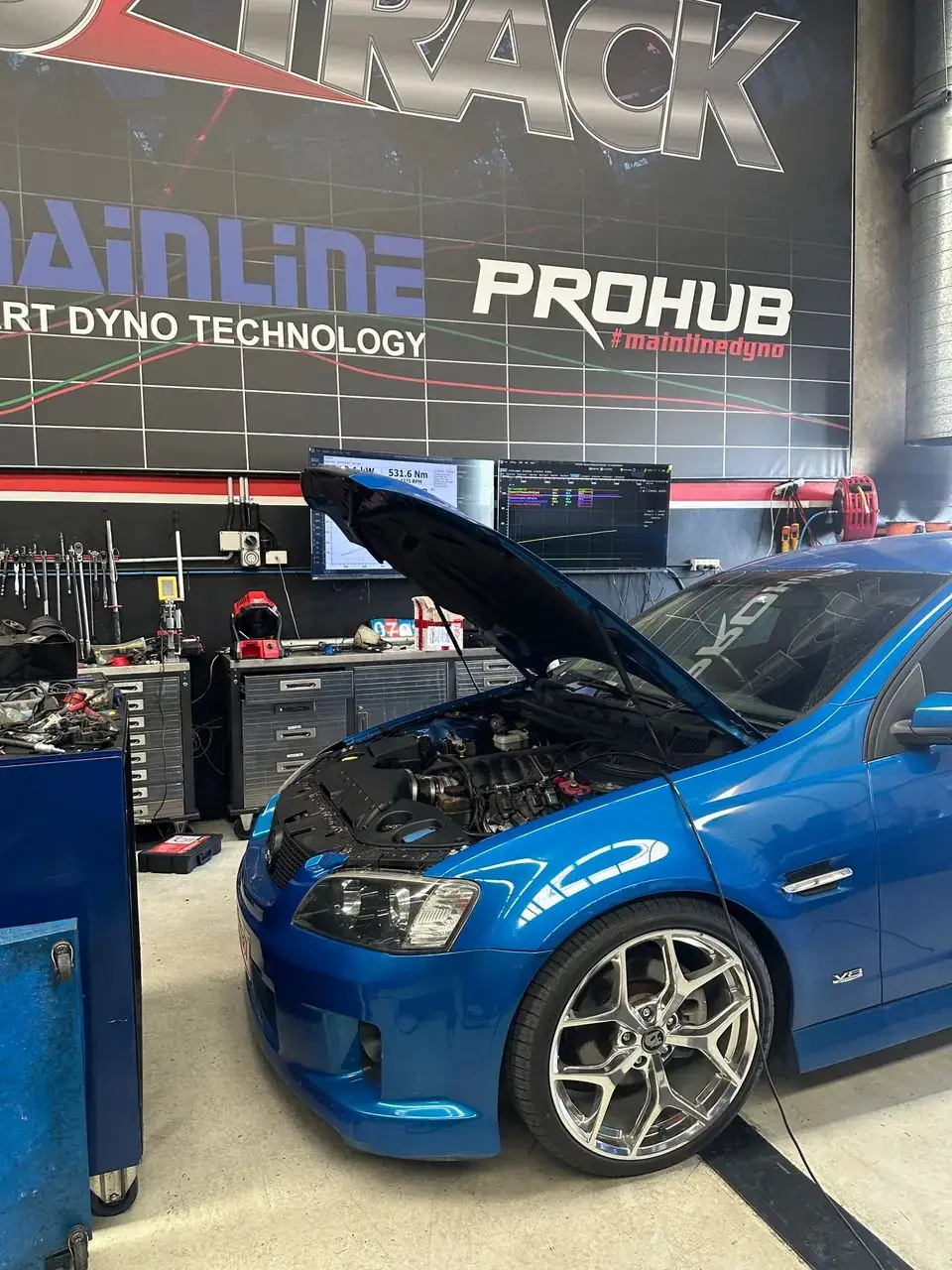

Robert · VE Wagon L98 · Manual
Stock-cam L98 with intake and exhaust
Robert’s manual VE wagon retains its stock L98 camshaft and adds a performance exhaust, VCM OTR and custom dyno tune. It recorded 288.1 rwkW at 5636 rpm and 531.6 Nm at 4375 rpm.
- VE Wagon L98 6.0L
- Six-speed manual
- Stock camshaft
- Performance exhaust
- VCM OTR intake
- Oztrack custom dyno tune
A useful stock-cam reference point for VE 6.0L owners considering intake, exhaust and tuning.
Inspect and log
We check the car and log the engine before making calibration changes.
Tune the combination
Fuel, spark, airflow and torque settings are adjusted for the engine, transmission and parts fitted.
Verify the result
Final runs confirm power delivery, air-fuel ratio and repeatability under load.
6.0L dyno result questions
What affects Holden 6.0L rear-wheel power?
What power will my Holden 6.0L make?
The result depends on the engine’s condition and the complete combination. Camshaft, cylinder heads, intake, exhaust, fuel and transmission all affect the final figure. These five cars show a measured range from 288.1 to 374.1 rwkW.
How much power can a stock-cam L98 make?
Robert’s stock-cam manual L98 wagon recorded 288.1 rwkW with a performance exhaust, VCM OTR and custom dyno tune. Your result may differ with engine condition, transmission, fuel and the parts fitted.
Why do similar 6.0L builds make different power?
Cars with similar parts can differ because of engine condition, camshaft specifications, head flow, exhaust restrictions, fuel quality and calibration. Dyno type and test method also change reported figures, so results recorded on the same dyno provide a better comparison.
Where were these 6.0L dyno results measured?
All five cars were measured at Oztrack Engineering & Tuning in Penrith, Western Sydney, using our Mainline ProHub dyno.
Can Oztrack tune LS2, L98 and L77 engines?
Yes. Oztrack dyno tunes Holden LS-based combinations including the LS2, L98 and L77 engines shown on this page. You can also compare our LS3 dyno tuning results.
