LS Engine Reconditioning with Cam Upgrade

Oztrack’s LS Engine Reconditioning combined with a Camshaft Upgrade

When your LS engine needs a performance boost or a complete overhaul, Oztrack stands ready with precision and efficiency. In 2023, we revolutionized our services with an in-house CNC engine machining facility. This cutting-edge technology allows us to offer LSx engine rebuilds and engine reconditioning with an unrivalled turnaround time. Whether you’re looking for enhanced performance or need to recover an aging engine, we deliver exceptional results.Thanks to our advanced capabilities, we can complete an LS engine rebuild with a drive-in and drive-out timeframe of just three weeks. We also offer an urgent priority engine reconditioning service for those who need their vehicles back quickly. This service has a completion time of under one week. We can also rebuild the engine without the car coming to Oztrack. Just send the engine or drop it off and we can Rebuild the Engine without the car.

Suitable for the following engines

• LS1
• LS2
• LS3
• L76
• L77
• L98

We also recondition LSA engines and LS7 engines. Call us for quotes.

Comprehensive Camshaft Upgrade Package

At Oztrack, we understand that every engine rebuild is unique. Our cam upgrade package is designed to deliver enhanced performance and reliability and is tailored to your needs. Here’s what’s included in our premium LS engine rebuild package:

• Oztrack LS camshaft chosen for optimal suitability and performance.
• High-performance dual-valve springs (ask about the optional Titanium Retainers and if you need them)
• Durable chromoly pushrods
• A complete gasket kit
• LS7 lifters and buckets
• Genuine GM head bolts and balancer bolt
• GM rear main plate with seal
• An upgraded GM oil pump for enhanced oil pressure
• IWIS single timing chain
• LS7 cam sprocket
• GM chain dampener
• Your heads are cleaned in a hotwash, they are not serviced. You need to choose the CNC Heads option for that.
• If your engine is an L76/77 it will require a different Valley Plate to get rid of the afm/dod.

Oztrack Camshafts 2025

---

• GT LS1-LS2 Cathedral Port specific cam. OK with stock pistons as long as heads are not shaved.
• GTX-R (LS1-LS2) requires aftermarket pistons with valve reliefs or flycuts made into the factory pistons. This is an extra $500 inc. uprated valve springs
• HPX-R (Rectangular Port) L98 L77 L76 LS3 need special pistons. These pistons must be forged with valve reliefs or have flycuts. We can supply replacements with flycuts. This is an extra $500 inc. uprated valve springs

We have had a 6L with the HPX-R & CNC Ported Heads with increased compression ratio make 400 rwkw before.Performance Design Carbon XS Manifold and Granatelli 103mm Throttle body. Gains of approx 15rwkw and 25 Nm are possible. $3400 extra

---

In addition, we provide professional engine removal and installation services to ensure your vehicle is handled with care.

Precision Engine Machining for Maximum Results

Our engine reconditioning process incorporates advanced machining techniques to restore your engine to factory specifications—or better. Here’s a closer look at the machining steps involved:

• Chemical Hot Wash: Your engine is thoroughly cleaned to remove contaminants.
• CNC Block Surfacing: We resurface the block using our Comec CNC machine to achieve a flawless finish.
• CNC Boring: The cylinders are precision-bored to size for consistent clearances.
• Torque Plate Honing: Our Sunnen honing machine ensures the cylinders are honed perfectly. This process, verified with a profilometer, guarantees precision for your engine’s application.

We also install brand-new pistons, rings, and bearings (for rods, cam and mains).

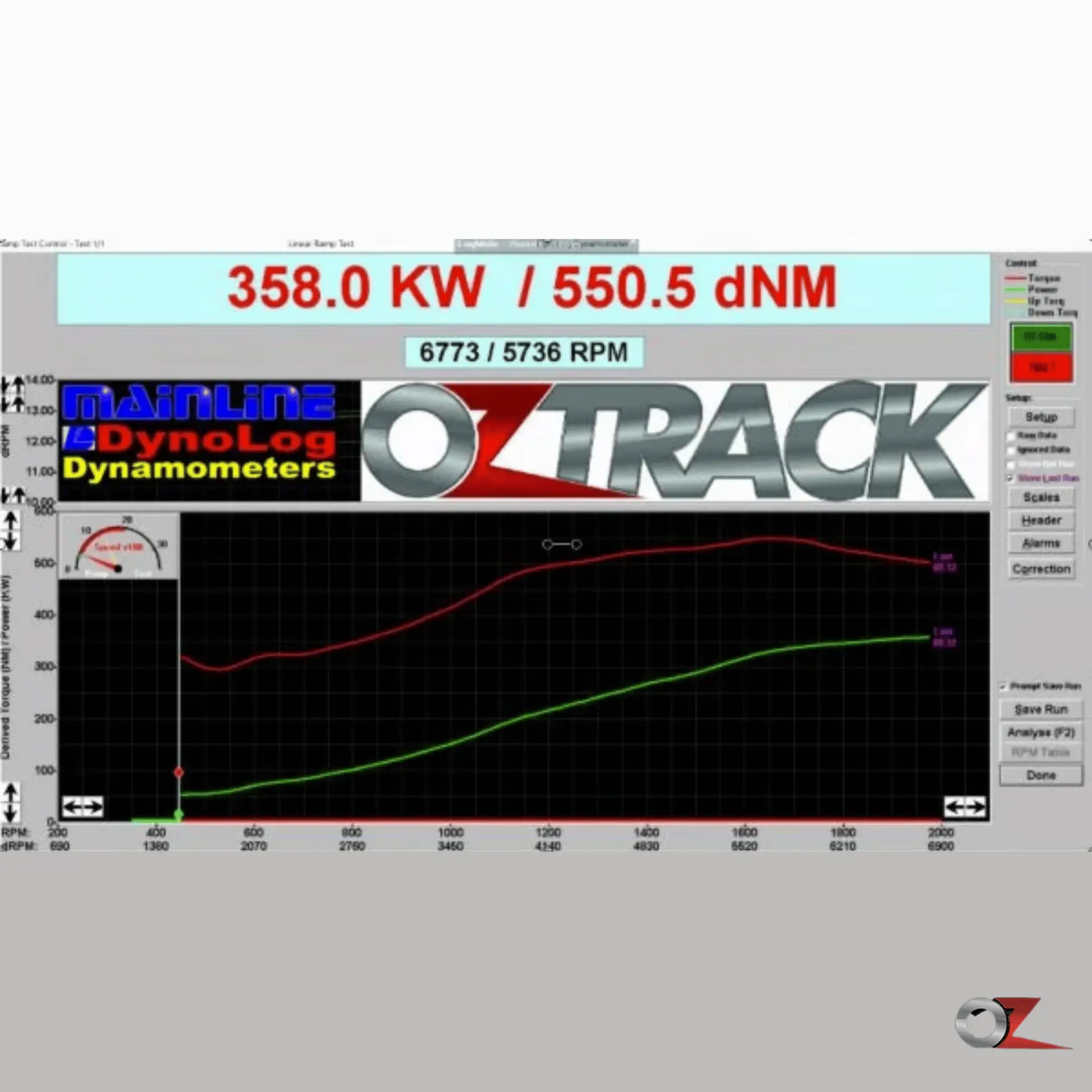

Run-In and Dyno Tuning for Peak Performance

Every engine rebuild undergoes a complete run-in process on our Mainline Prohub Dyno. During this procedure:

• GM-approved run-in oil is used to ensure a smooth break-in period.
• The engine is then run on the dyno to optimize performance across the entire RPM range.
• After the run-in, we replace the oil with premium synthetic oil.
• A custom dyno tune maximizes power and torque across the RPM range, tailored to your specific engine setup.

This comprehensive process ensures your fresh engine performs at its best from the start.

Avoid Catastrophic Valve Seat Drops

For 6L and 6.2L LS engines, there is a significant risk of valve seat drops after the engine has surpassed 150,000 km. This issue, often caused by overheating, can result in catastrophic block damage. Unfortunately, predicting when or if this will occur is impossible.To mitigate this risk, we recommend replacing your old heads with CNC Ported used heads that have new intake valve seats.  These high-quality components are reasonably priced and provide a reliable solution to this common problem.

Some engines require sleeving

This is because their bores are worn too much. They cannot be bored oversize. The factory cylinders may not be centered due to core shift. As a result, the block cannot be rebored. We install special sleeves which make the cylinders better than from factory. We use Melling usually.  Many LS3 and LSA require sleeving.

Why Rebuild Instead of Replacing with a Crate Engine?

Many LS engine owners consider purchasing a crate engine as a quick fix. However, an engine rebuild  with engine reconditioning is often the smarter, more cost-effective choice. Here’s why:

1. Customized Performance: Unlike mass-produced crate engines, our rebuilds are tailored to your vehicle’s needs.
2. Superior Components: We use high-quality parts, including camshafts, pistons, and bearings, to ensure durability and reliability.
3. Cost Efficiency: Rebuilding your current engine can save you money. This option is often cheaper than buying a brand-new crate engine. You can achieve similar performance without the high cost. You get more for your money, and the result is better.
4. Enhanced Durability: Our sleeved block option delivers a stronger engine than new from GM. This is especially accurate with LS3 and LSA due to their core shift.

Selecting an Oztrack LS engine rebuild can help you save money. You will also enjoy a high-quality motor built to your exact specifications.

Manta Exhaust Integration for your LS Engine Build

To complement your engine rebuild, we also offer Manta Exhaust installations. As Platinum Dealers for Manta Exhaust, which owns DPE Exhaust, we provide competitive rates and professional installation services. Integrating a high-performance exhaust system with your LS engine rebuild further enhances your vehicle’s power and sound. We have VF Commodore Exhaust, VE Commodore Exhaust, HSV Exhaust, and VT-VZ Exhaust, which all perform very well.

Located in Penrith, Sydney—Your Local LS Engine Experts

Oztrack is conveniently located in Penrith, Sydney, making us your go-to solution for LS engine builds and reconditioning. If you’ve been searching for “engine builders near me,” look no further.Our expertise extends beyond basic rebuilds—we specialize in reconditioning engines to outperform even factory standards. Don’t settle for an L77 crate engine or a used LS1, LS2, or LS3 motor. Our rebuilds are more reliable, better-performing, and cost-effective.

Contact Us for Your LS Engine Rebuild

At Oztrack, every rebuild is personalized to meet your needs. Whether you want a camshaft upgrade or a complete engine reconditioning, we can help. We are here for you if you need advice on the best steps to take.Call us today at +61 2 9119 3895 to discuss your engine build and schedule an appointment. This page lists our primary services. However, we invite you to contact our expert engine builder, Jono or discuss the project with Steve. They can develop a personalized plan for your vehicle.

Experience the Oztrack Difference

Choosing Oztrack means choosing quality, precision, and unparalleled expertise. With our advanced facilities, we focus on customer satisfaction. We will ensure that your LS engine rebuild exceeds your expectations. Do not settle for anything less than the best—Trust Oztrack to provide a stronger, faster, and more reliable motor.If you want more power than a cam upgraded 6L or 6.2L can give we can stroke your engine with our OZ500 upgrade
