LS1 Dyno Results at Oztrack
Five different 5.7-litre LS1 combinations, from a stock-cam street car to a high-compression E85 engine. Every result shown here was recorded during tuning at Oztrack in Penrith on our Mainline ProHub dyno.
What can an LS1 make on the dyno?
LS1 results can vary widely because the peak number is only one part of the combination. Intake airflow, exhaust design, camshaft timing, cylinder-head flow, compression ratio, fuel, converter choice and calibration all affect the final power curve.
A stock-cam LS1 with a good intake and exhaust can produce a strong street result, while a cammed engine can gain far more when the valve springs, exhaust and tune suit the camshaft. Cylinder heads, a larger intake manifold and higher compression can move the result further again, but the engine still needs the correct fuel and spark calibration across the full operating range.
Rear-wheel power should not be judged by the peak figure alone. A useful dyno result also shows how the engine carries torque, how cleanly it accelerates and whether the calibration remains consistent under load. Oztrack uses a Mainline ProHub dyno because it connects directly to the vehicle hubs, removing tyre slip and tyre-pressure variation from the test.
Oztrack provides LS1 dyno tuning in Penrith for customers from Western Sydney, the Blue Mountains and across NSW. The examples below range from stock-cam street cars to a high-compression E85 race engine.
Last updated August 2026
LS1 result comparison
| Vehicle | Combination | Fuel | Result |
|---|---|---|---|
| Craig's VT Clubsport A4 | Exhaust, headers, cats, stock airbox | 98 | 245.3 rwkW |
| Grant's LS1 A4 | Stock cam, VCM OTR, full exhaust | 98 | 266.3 rwkW |
| Ethan's LS1 manual | Small cam, VCM OTR, full exhaust | 98 | 313.1 rwkW |
| Joe's VY LS1 A4 | GT cam, CNC heads, FAST 102, Circle D converter, full exhaust | 98 | 345.9 rwkW |
| Corey's built LS1 | 12.4:1, CNC 243 heads, GTX-R cam, Haltech | E85 | 352.5 rwkW |

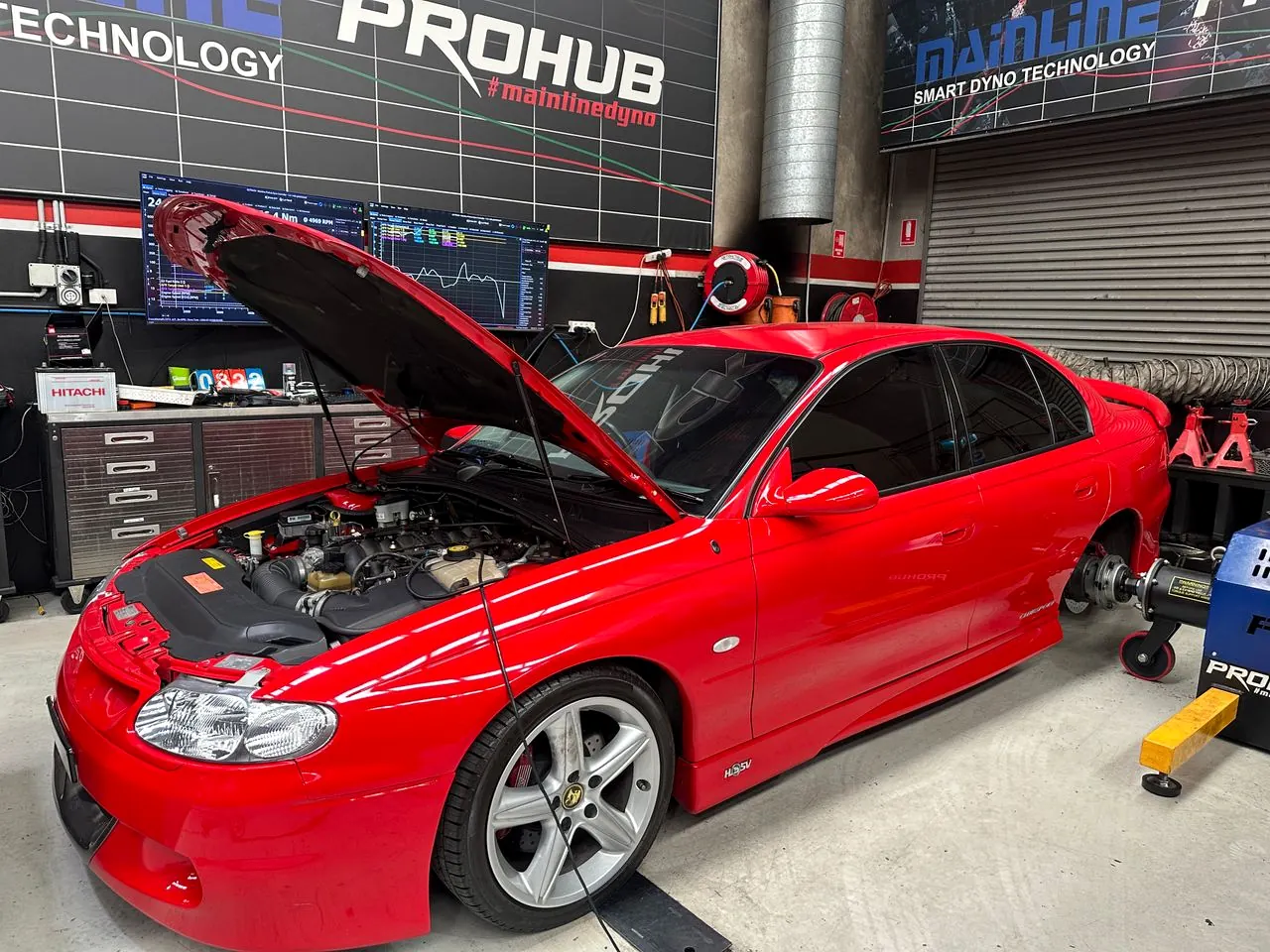

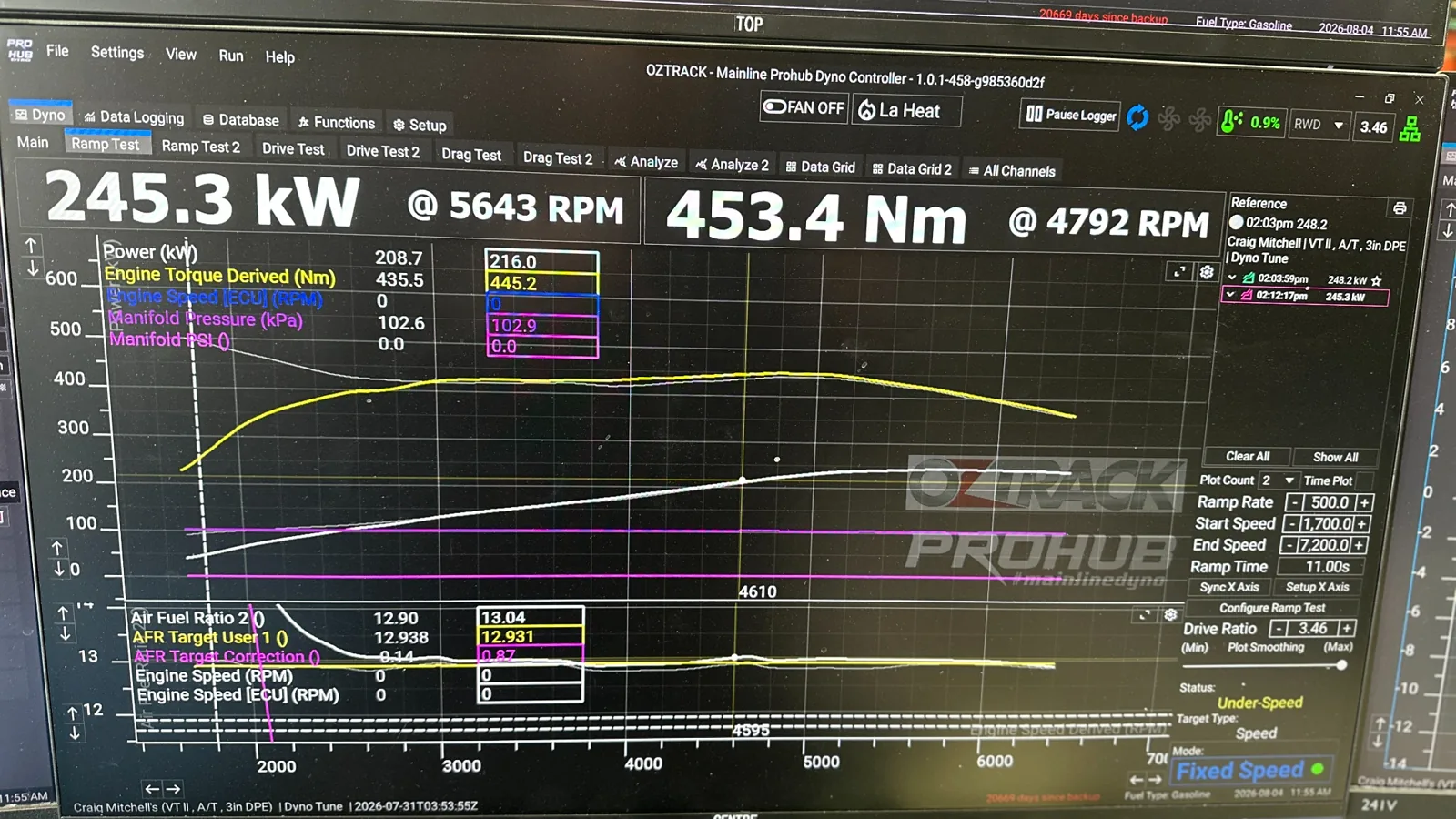

Stock-airbox LS1 with full exhaust
- VT Clubsport with four-speed automatic
- Manta DPE twin 3-inch cat-back exhaust
- 1 7/8-inch four-into-one headers
- High-flow catalytic converters
- Factory airbox retained

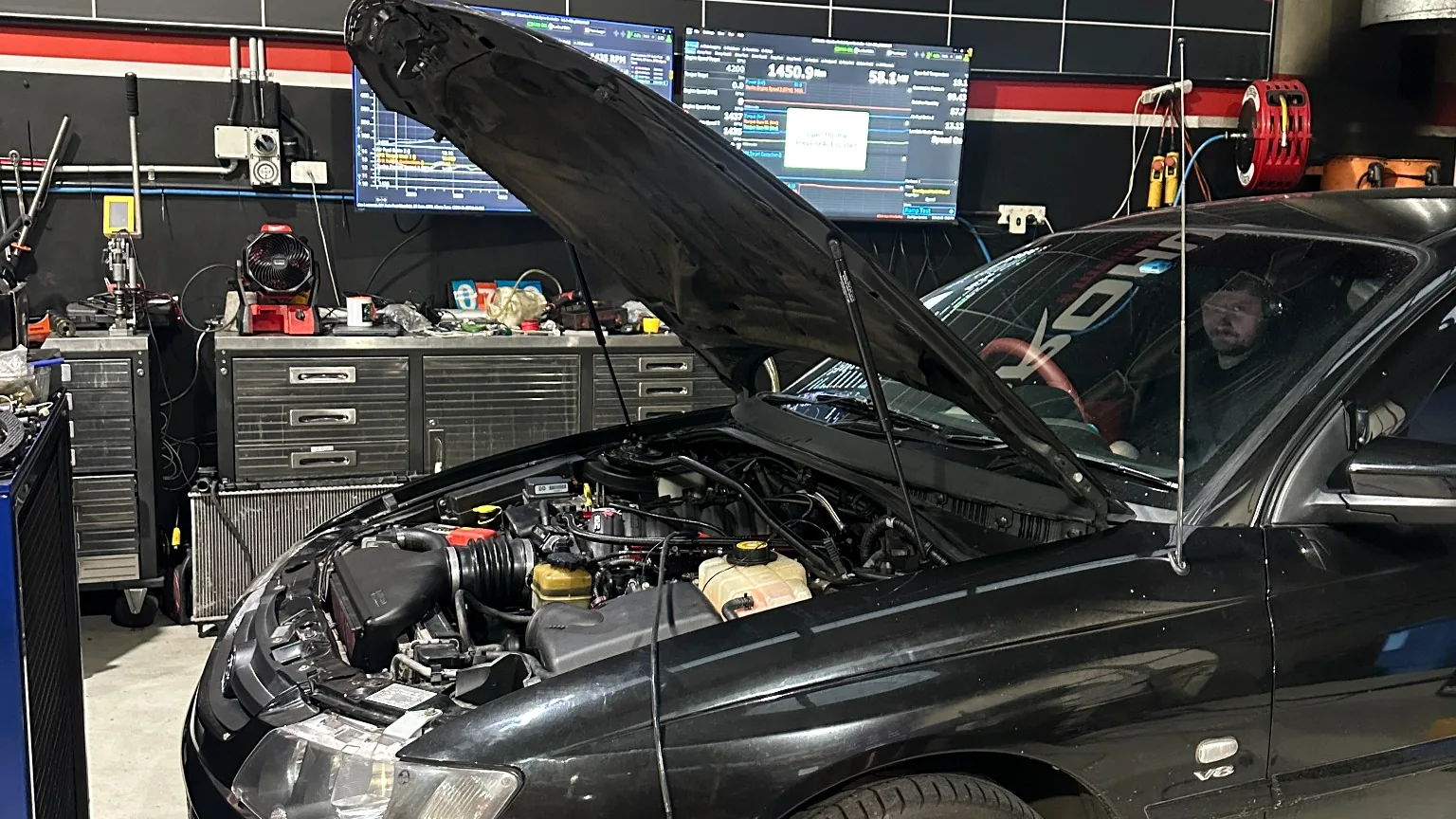

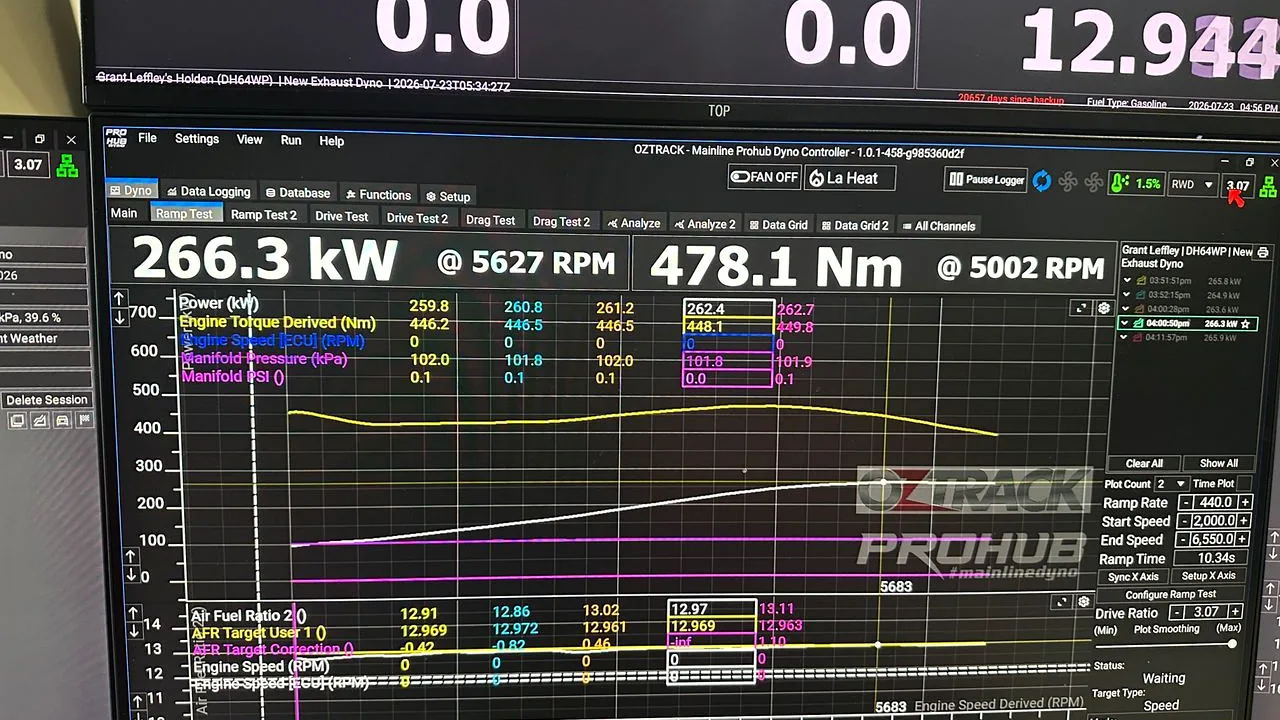

Stock cam with OTR and exhaust
- Four-speed automatic LS1
- Factory camshaft
- VCM over-the-radiator intake
- Manta DPE twin 3-inch cat-back
- 1 7/8-inch four-into-one headers and high-flow cats

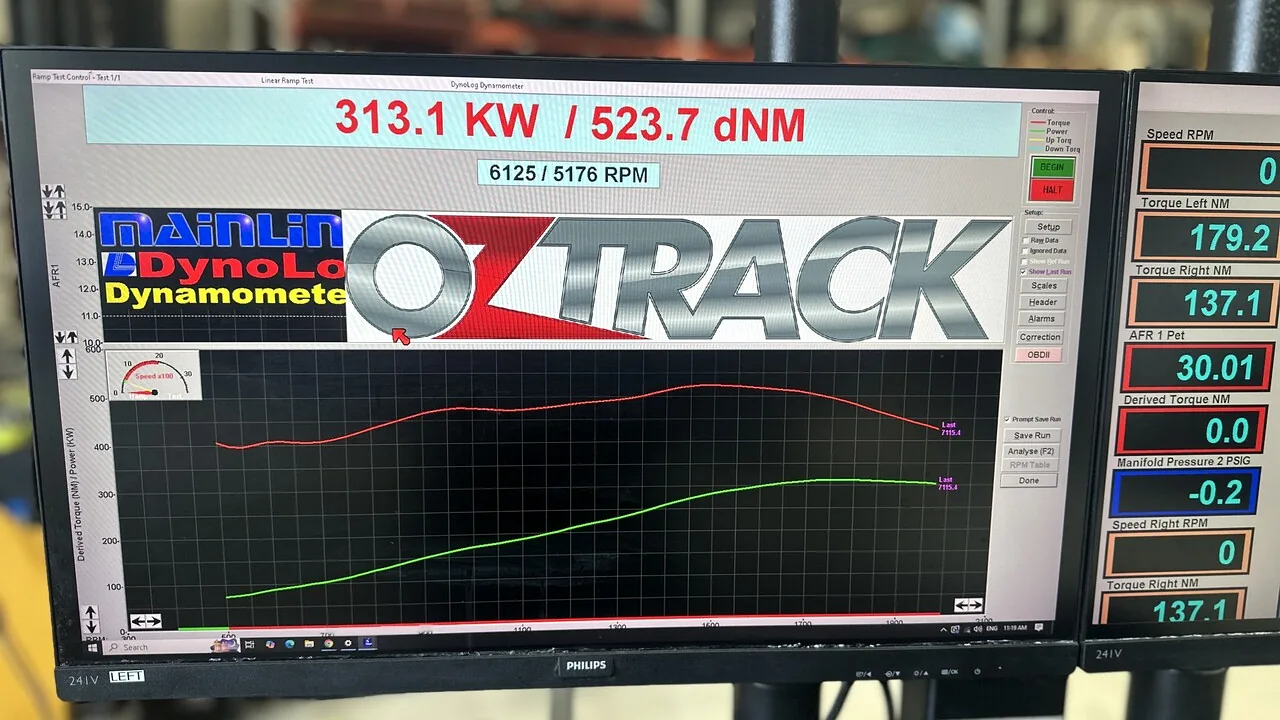

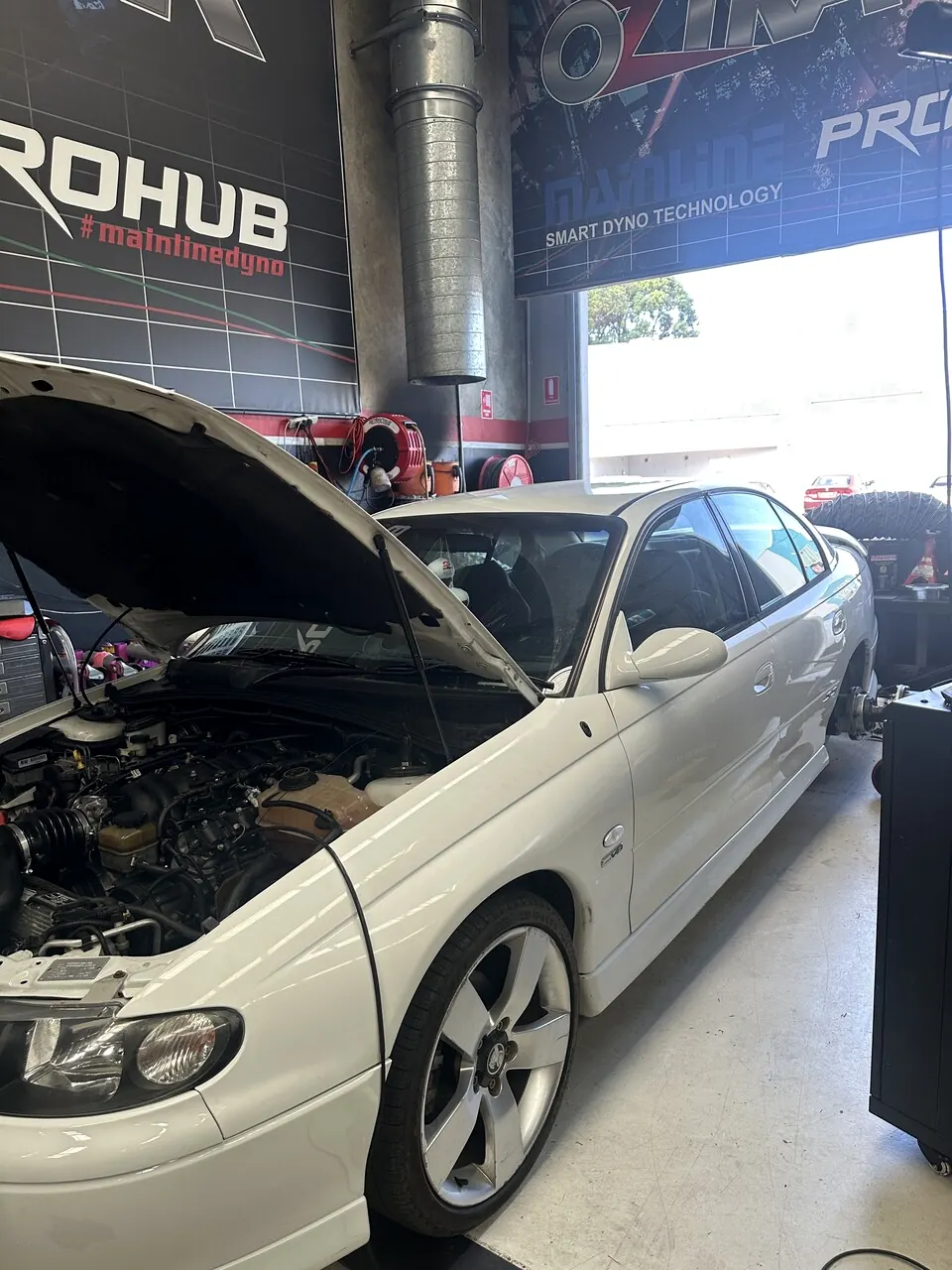

Small cam, OTR and complete exhaust
- Six-speed manual LS1
- Small camshaft
- VCM OTR intake
- Manta DPE twin 3-inch cat-back
- 1 7/8-inch four-into-one headers and cats

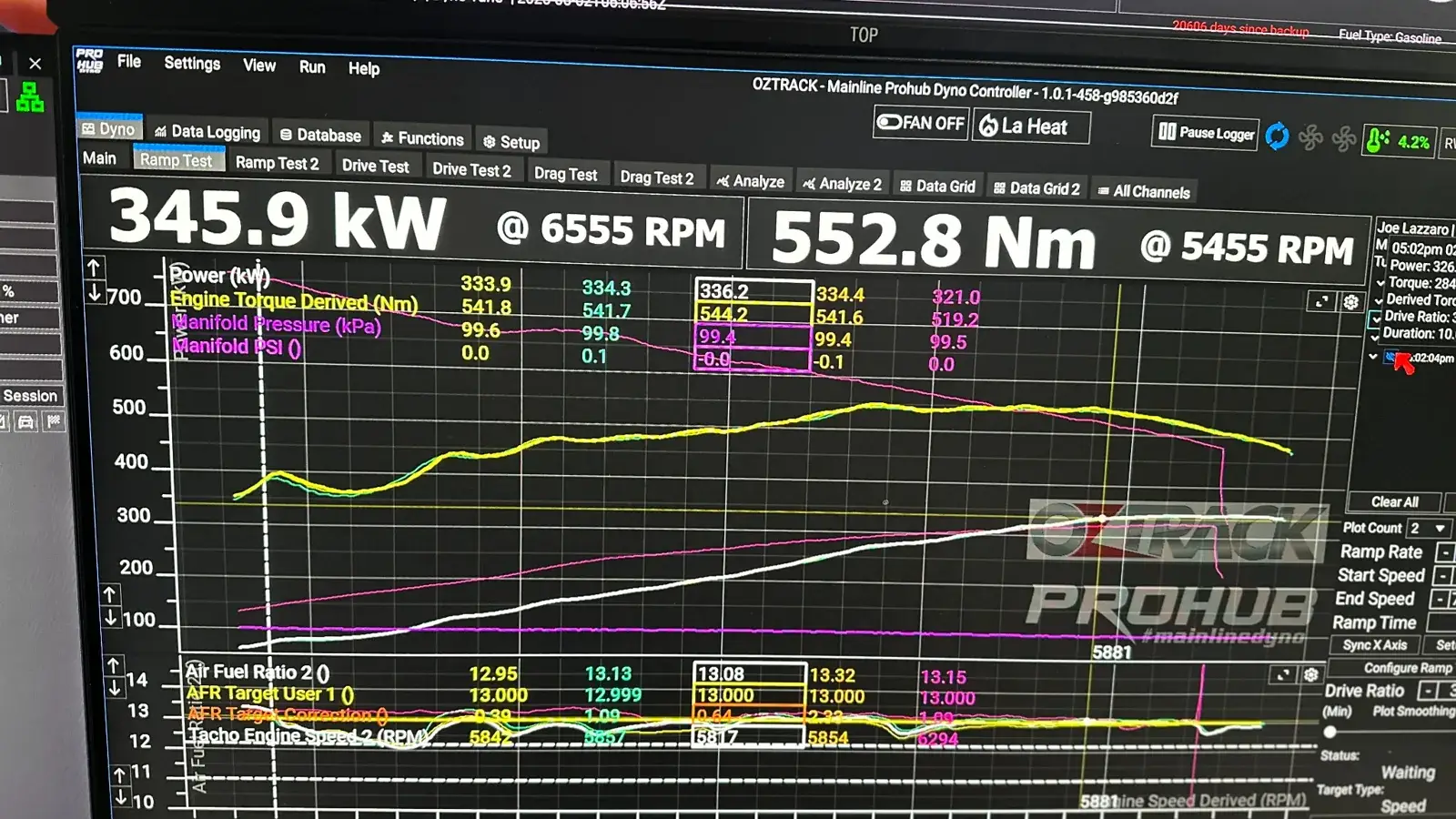

4-speed automatic with GT cam, CNC heads and FAST 102 intake
- VY 5.7-litre LS1 with 4-speed automatic transmission
- Circle D triple-plate converter
- Oztrack GT camshaft
- CNC-ported LS1 cylinder heads
- FAST 102 mm manifold and 102 mm throttle body
- 1 7/8-inch four-into-one headers and twin 3-inch exhaust

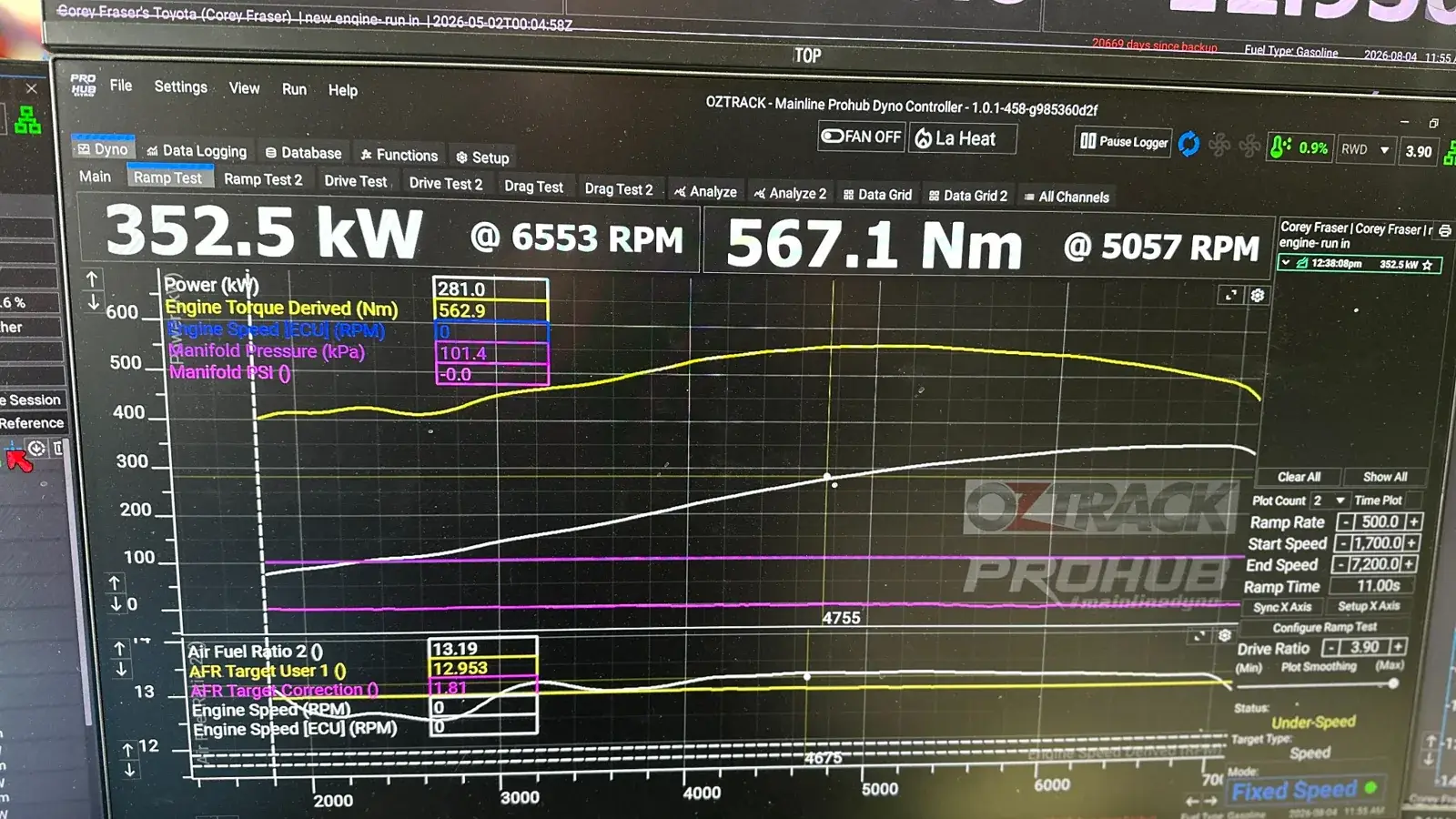

High-compression E85 race combination
- Built 5.7-litre LS1
- 12.4:1 compression ratio
- CNC-ported 243 LS2 cylinder heads
- Oztrack GTX-R camshaft
- E85 fuel and Haltech engine management
Why these LS1 results differ
LS1 dyno tuning questions
How much power can a stock-cam LS1 make?
The examples on this page produced 245.3 to 266.3 rwkW with stock camshafts, depending on intake, exhaust, vehicle and other differences.
How much can a cammed LS1 make?
The small-cam manual example made 313.1 rwkW. The more developed cam, head and intake combinations reached 345.9 and 352.5 rwkW.
Does an automatic LS1 need transmission tuning?
Transmission calibration can improve shift behaviour, torque management and converter operation. The correct approach depends on the gearbox and vehicle combination.
Why use a Mainline ProHub dyno?
The dyno connects directly to the vehicle hubs, removing tyre slip and tyre-pressure variation from the test. This supports consistent data during calibration.
Can Oztrack tune an existing LS1 combination?
Yes. Oztrack tunes standard, bolt-on, cammed, high-compression and aftermarket-ECU LS1 combinations. Call with the full modification list before booking.
Book your LS1 dyno tune
Send us your engine, gearbox, fuel and complete modification list before booking so we can confirm the correct dyno session and check whether anything should be addressed before tuning.
Rear-wheel dyno results are useful for comparing combinations tested on the same equipment. Results can vary with vehicle setup, fuel, mechanical condition and test conditions.
